Disassembly

DISASSEMBLY

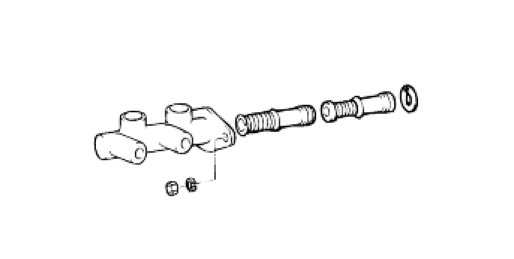

1. Remove the reservoir cap and drain the brake fluid into a suitable container.
2. Remove the reservoir from the master cylinder.
3. Using a snap ring pliers, remove the retainer ring.




1. Remove the bolt with the primary piston pushed completely using a screwdriver. Remove the primary piston assembly.
2. Remove the bolt with the secondary piston pushed completely using a screwdriver. Remove the secondary piston assembly.

NOTE:
Do not disassemble the primary and secondary piston assembly.
