Rear Disc Brake

REMOVAL

1. Remove the wheel.

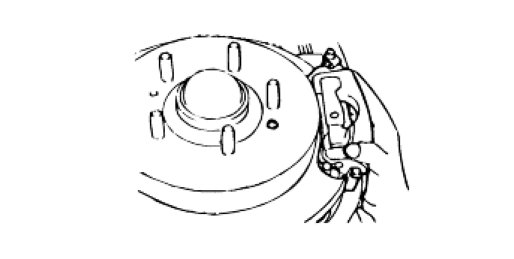

2. Remove the guide bolt, lift up the caliper assembly, and remove the pad assembly.






INSTALLATION

1. Before replacing the brake pads, drain brake fluid from the master cylinder reservoir until it remains half full.
2. Remove the brake pad by turning the piston in the housing assembly. Using the special tool (09581-11000), remove the piston.








3. Install two caliper guide rods and tighten to a torque of 22-32 Nm (220-320 kg-cm, 16-23 lb-ft)
4. After filling the master cylinder reservoir with the fluid, bleed the brake line.

Recommended brake fluid : DOT 3 or DOT 4
