Seat Cushion Heater Replacement








SEAT CUSHION HEATER REPLACEMENT
1. Remove the seat back cover.

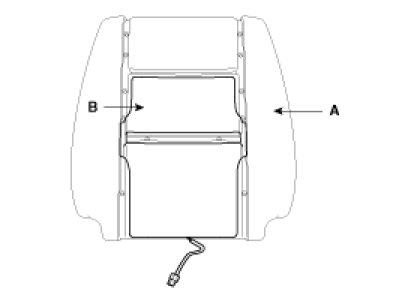

2. Seat cushion pad replacement (A).




3. Installation is the reverse of removal.
