Power Door Lock Actuator: Testing and Inspection

INSPECTION

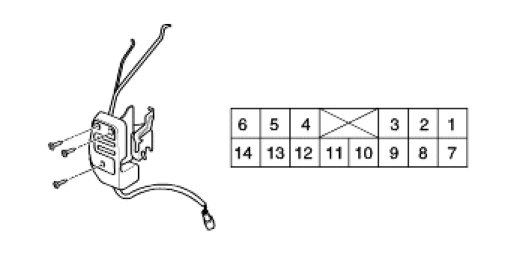

1. Disconnect the actuator connector from the wiring harness.

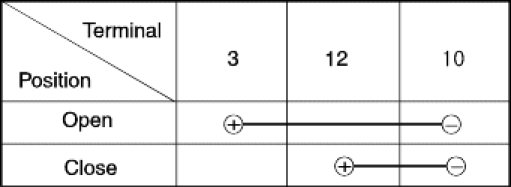

2. Apply battery voltage (12V) to each terminal as shown in the table and verify that the actuator operates correctly.
