Repair Procedures

REMOVAL

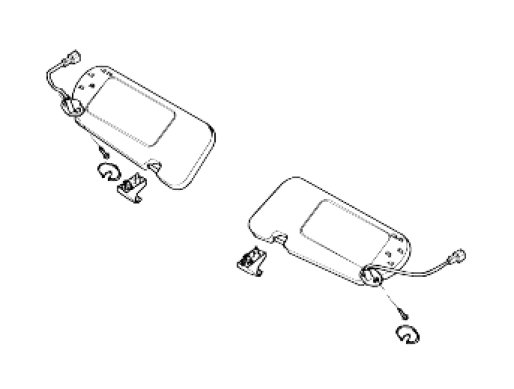

1. Unscrew two mounting screws from sunvisors.
2. Remove sunvisors and sunvisors retainers.

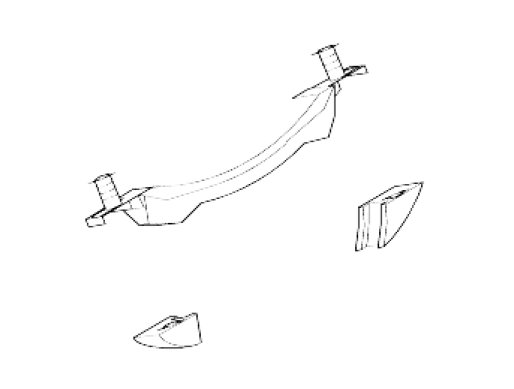

3. Remove assist handle covers, unscrew mounting screws.
4. Remove three assist handles.




5. Gently remove lens assembly on interior and map light.




6. Remove light bulb.
7. Remove two mounting screws.
8. Disconnect power connector and remove interior and map light.
9. Remove front, center, C and D-pillar trims.
10. Remove seven fasteners.
11. Remove headlining




12. Install in reverse order of removal.
