Repair Procedures

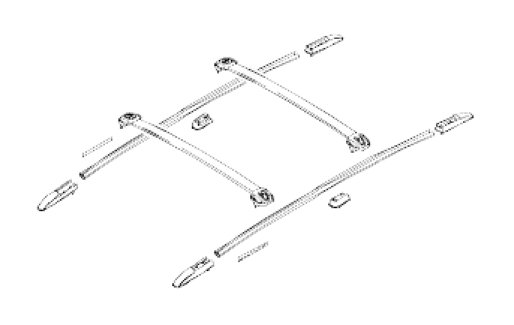

REMOVAL AND INSTALLATION

1. Remove flange nut (12).
2. Remove roof rack assembly.

3. Install in reverse order of removal.
