Hood Latch: Adjustments

ADJUSTMENT

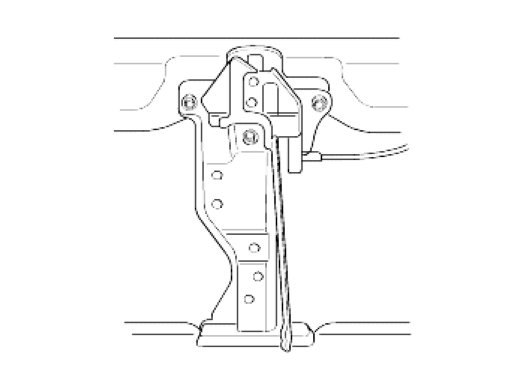

HOOD LATCH
1. Loosen the hood latch bolts.

Tightening torque :
7-11 Nm (0.7-1.1 kg-m, 5-8 lb-ft)


2. Adjust the alignment of the hood striker and the hood latch by adjusting the horizontal and vertical position of the latch and the height of the hood.
