Trip Computer: Service and Repair

REMOVAL

1. Disconnect the negative (-) battery terminal.

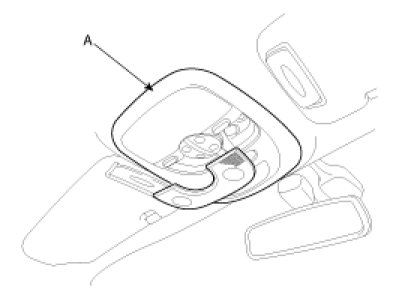

2. Remove the overhead console lamp cover(A).

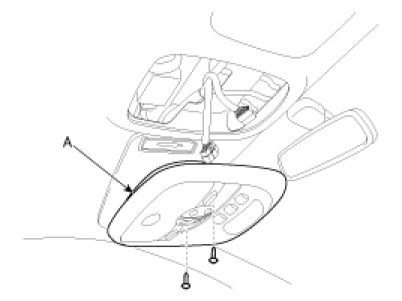

3. Disconnect the sunroof switch connector and trip computer connector after loosening the screws (2EA) and then remove the overhead console lamp (A) from the head lining.

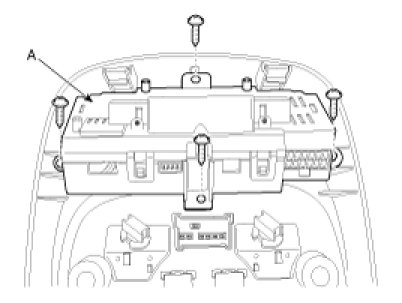

4. Remove the trip computer (A) from overhead console after removing the fixed screws (4EA).






INSTALLATION

1. Reassemble trip computer to the overhead console.
2. Connect the sunroof switch connector and trip computer connector.
3. Reassemble the overhead console.
