Speaker: Service and Repair

REMOVAL

FRONT SPEAKER
1. Remove the front door trim panel .

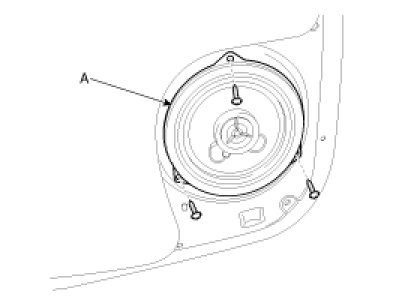

2. Remove the front speaker (A) after removing 3 screws.

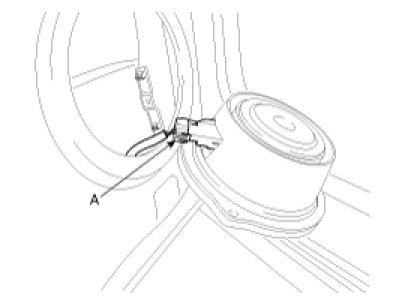

3. Remove the connector (A).





REAR SPEAKER
1. Remove the rear door trim panel .

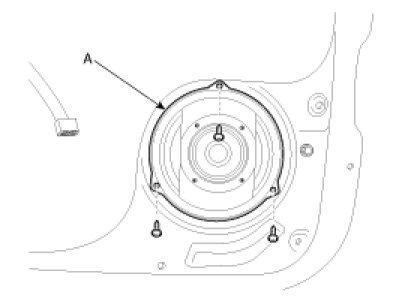

2. Remove the rear speaker (A) after removing 3 screws rivets.




3. Disconnect the connector(A).





TWEETER SPEAKER

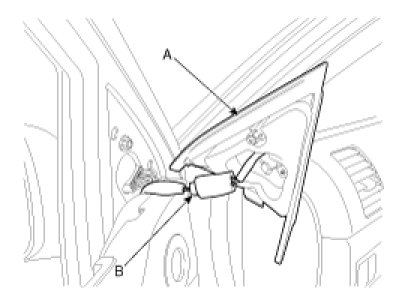

1. Remove the tweeter speaker cover (A) and then disconnect the connector (B) .





INSTALLATION

FRONT SPEAKER
1. Connect the connectors to the front speaker.
2. Reassemble the front speaker.
3. Reassemble the front door trim panel.

REAR SPEAKER
1. Connect the connectors to the rear speaker.
2. Reassemble the rear speaker.
3. Reassemble the rear door trim panel.

TWEETER SPEAKER
1. Connect the connectors and then reassemble the tweeter speaker.
