Instrument Cluster / Carrier: Locations

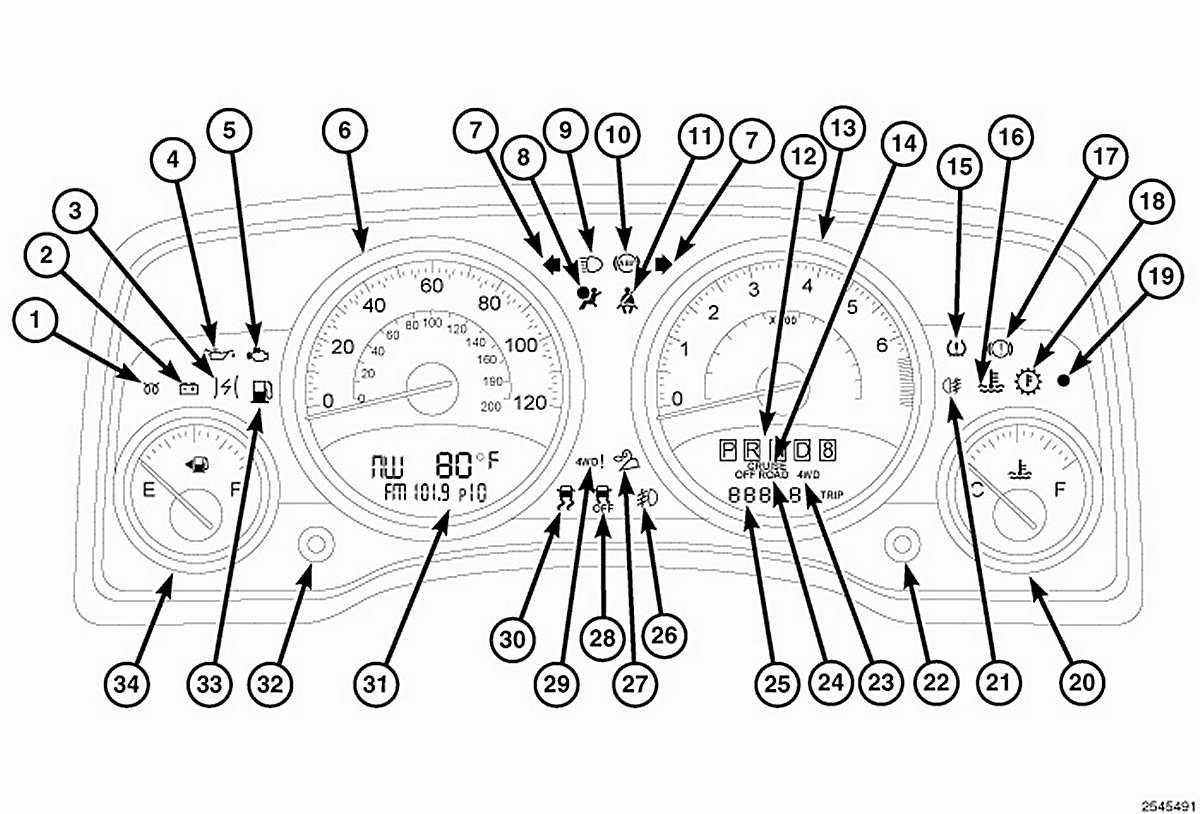

Instrument Cluster

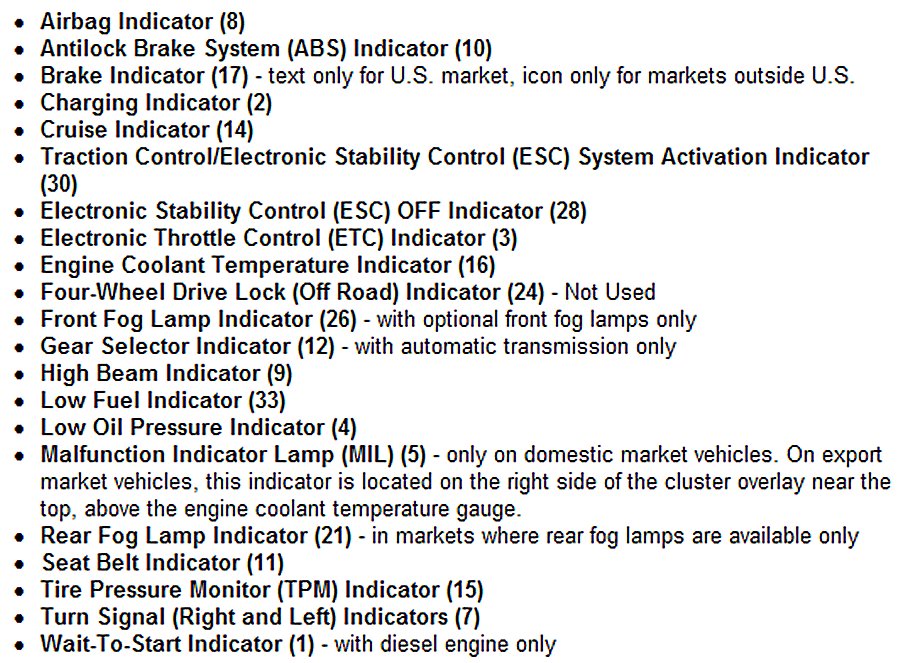

The instrument cluster includes provisions for the following indicators:
