Home >> Jeep Truck >> 2012 >> Compass 4WD L4-2.4L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Specifications

Alignment: Specifications

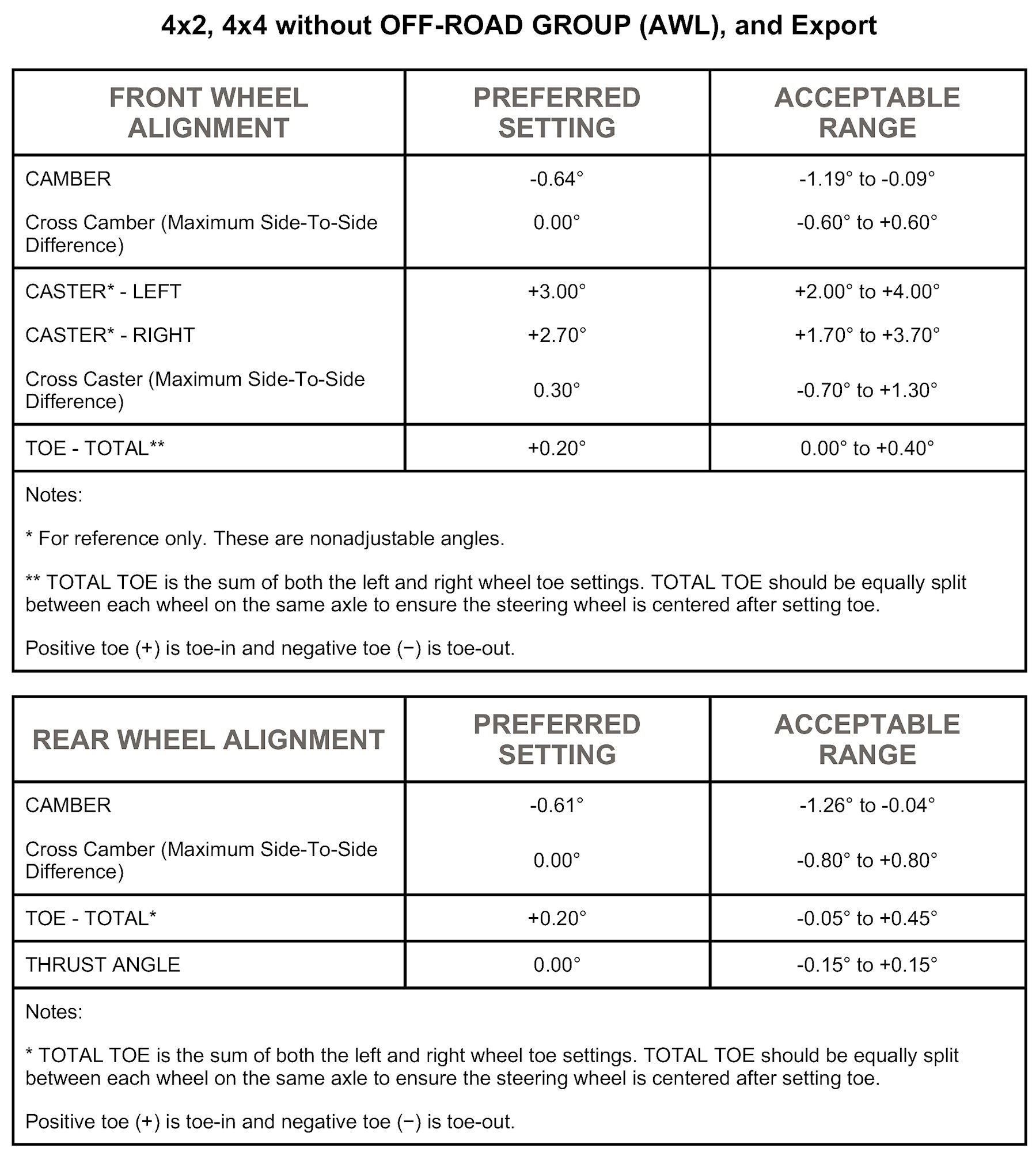

4x2, 4x4 Without OFF-ROAD GROUP (AWL), And Export:

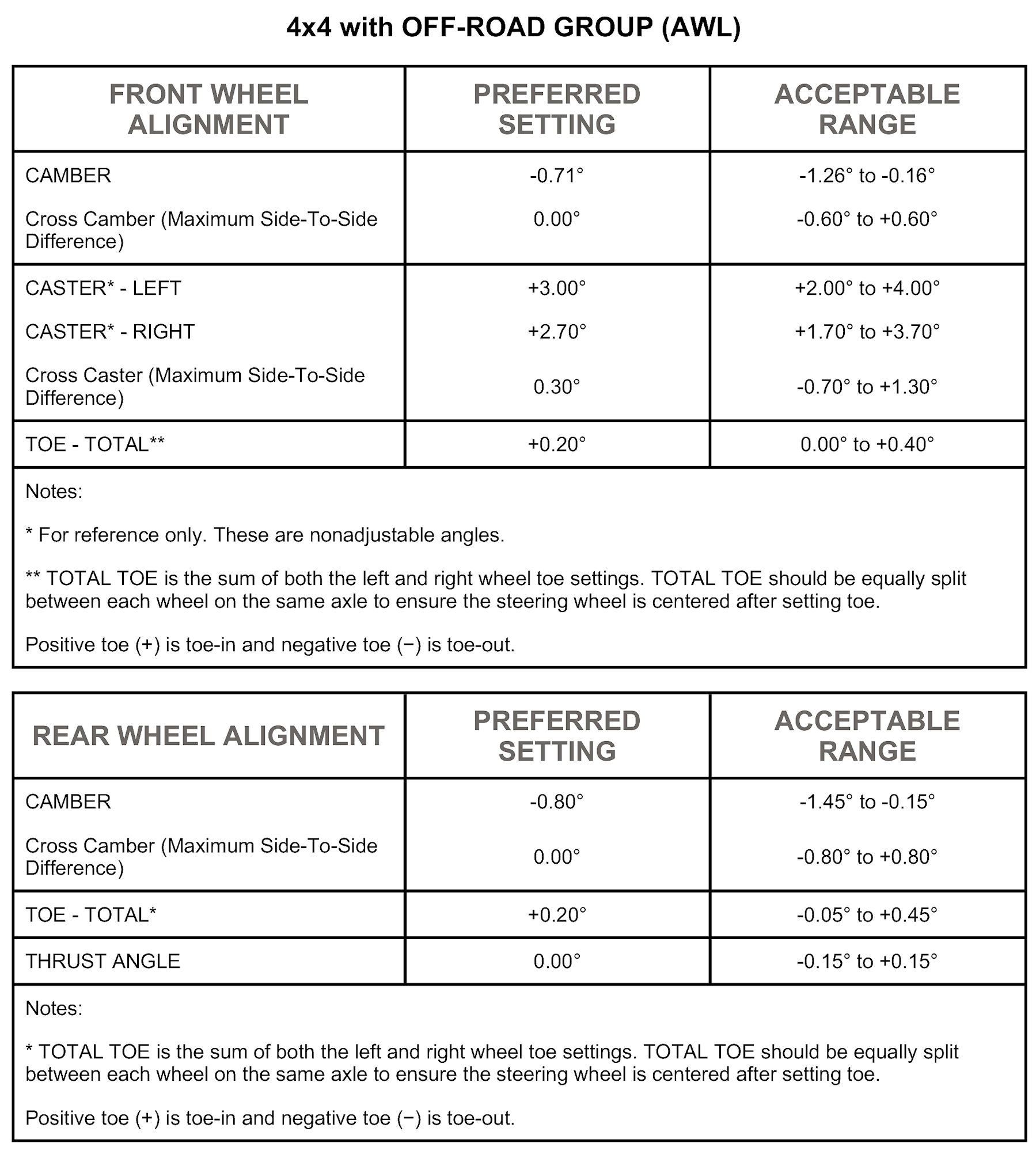

4x4 With OFF-ROAD GROUP (AWL):
