Home
>>
Jeep Truck
>>
2012
>>
Compass 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Alignment
>>
Ride Height
Ride Height
CURB HEIGHT SPECIFICATIONS

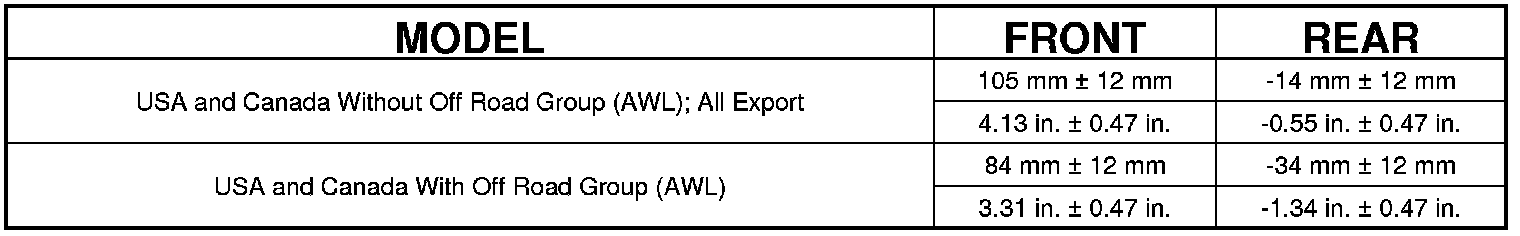

4x2 ALL ENGINES

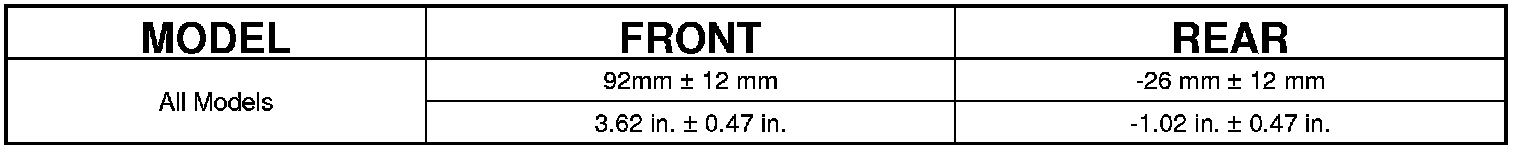

4x4 GAS ENGINE

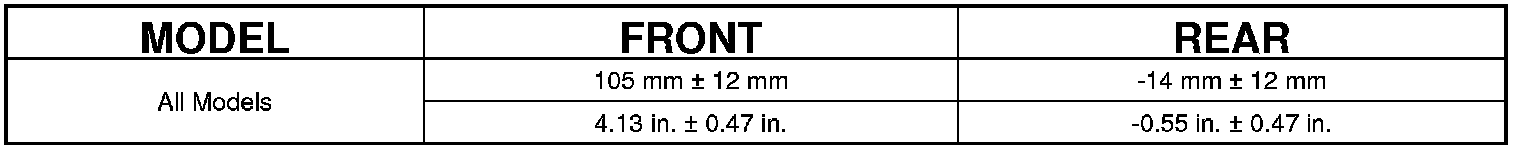

4x4 DIESEL ENGINE
