Canada - Recall - M11 Fuel Tank Roll Over Valve
BulletinM11
Issue Date
2012-05-25
IMPORTANT
DEALER SERVICE INSTRUCTIONS
SAFETY RECALL M11 FUEL TANK ROLL-OVER VALVE
MODELS:
2012 (MK) Jeep(R) Compass/Patriot
NOTE:
This recall applies only to the above vehicles equipped with Four Wheel Drive (sales code 5I4) built from December 20, 2011 through January 05, 2012 (MDH 122007 through 010511).
^ The fuel tank roll-over valve on about 250 of the above vehicles may have been damaged during assembly. This could result in fuel leakage in the event of a vehicle impact or roll-over. Fuel leakage in the presence of an ignition source can result in an underbody fire.

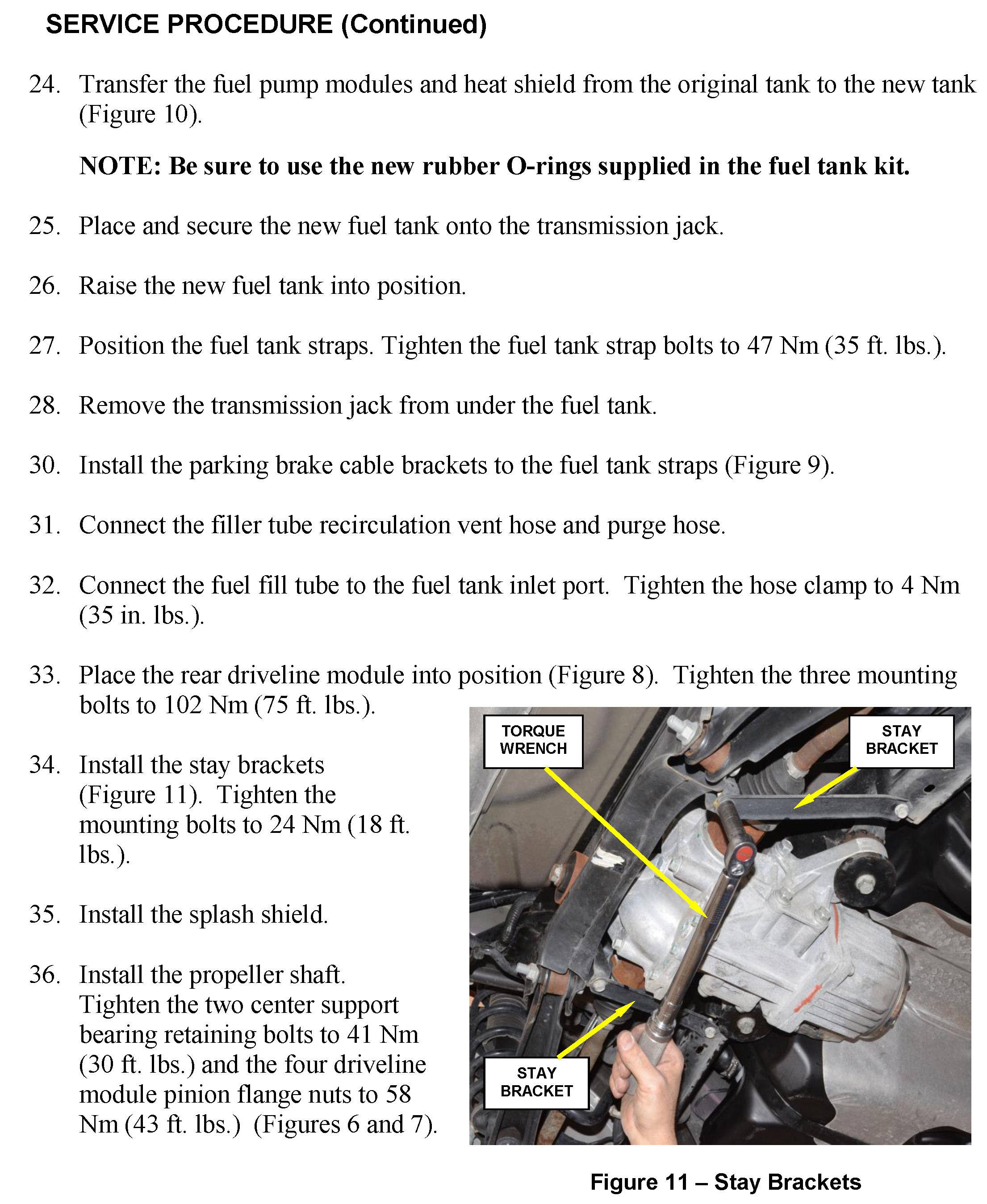

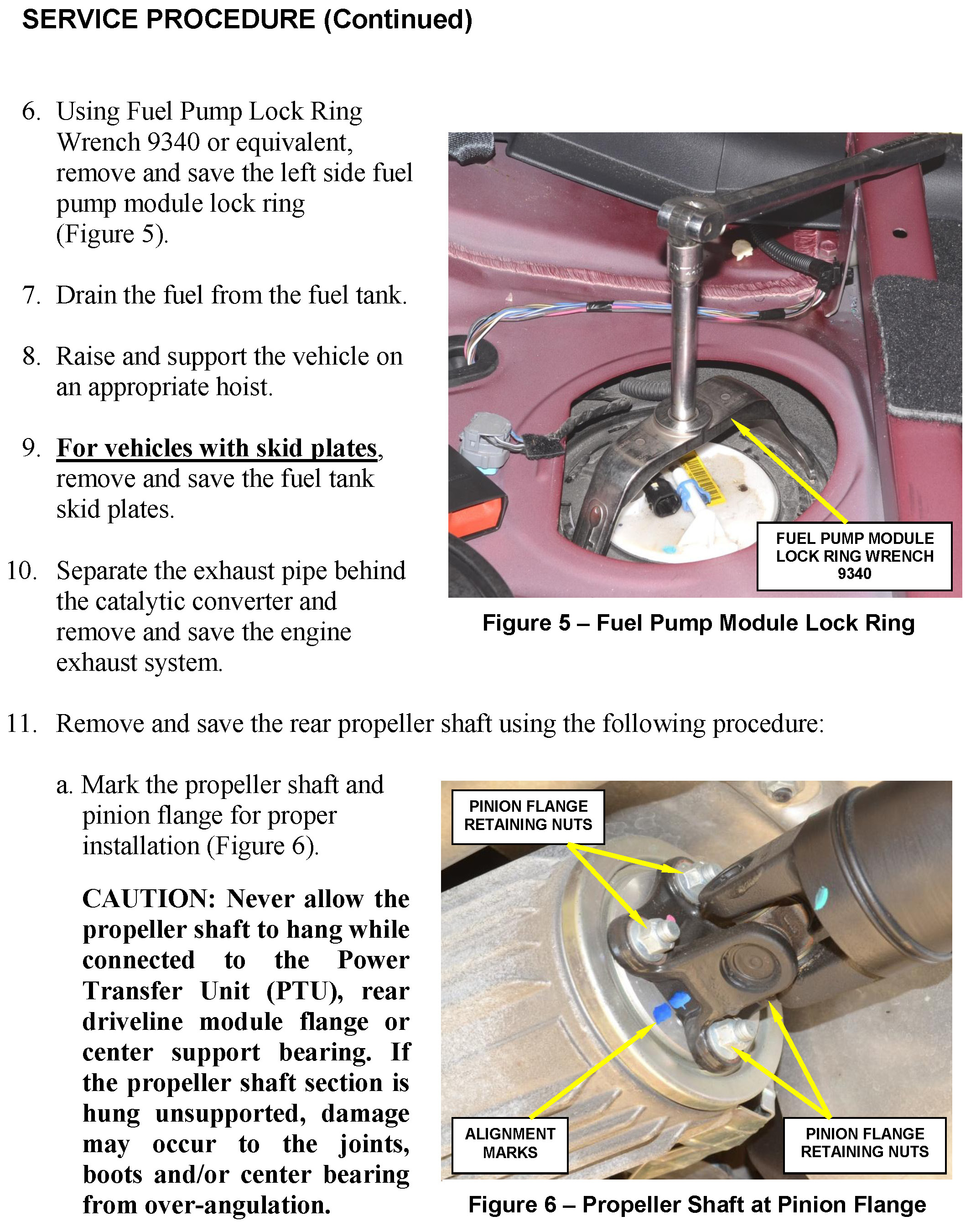

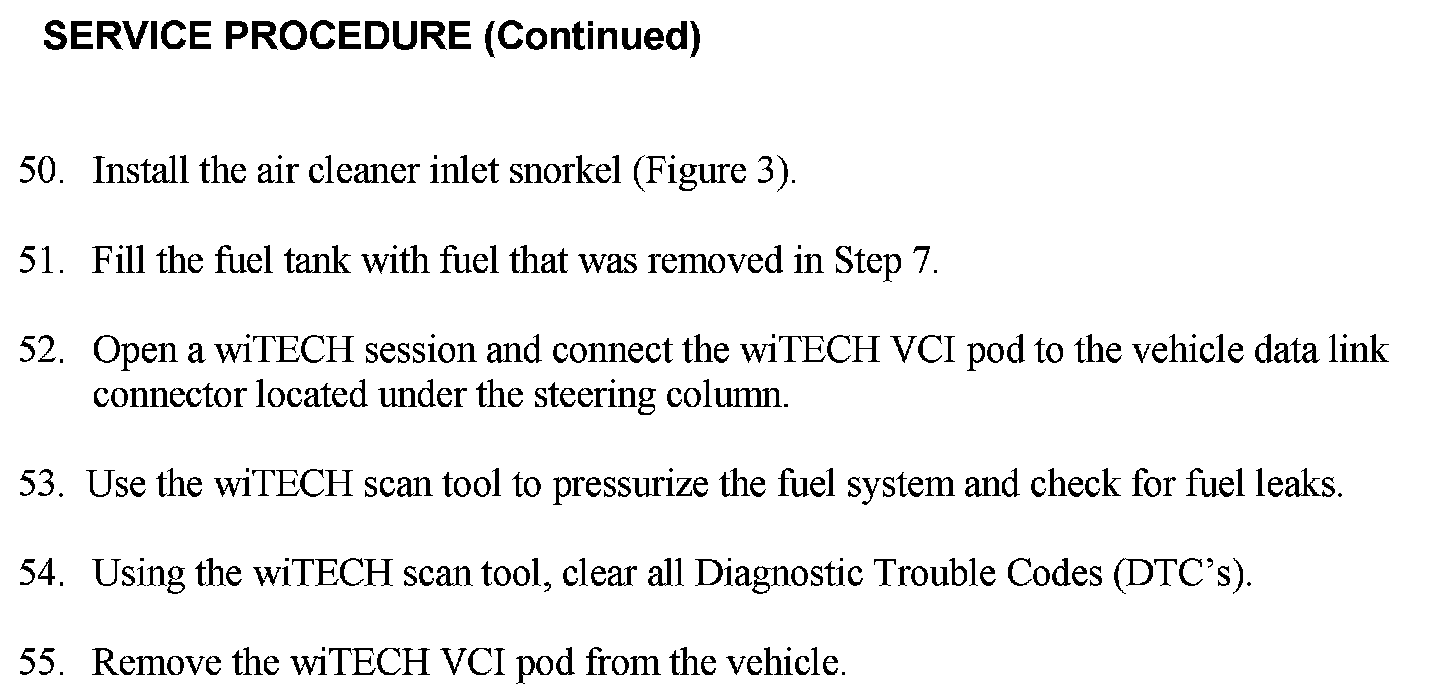

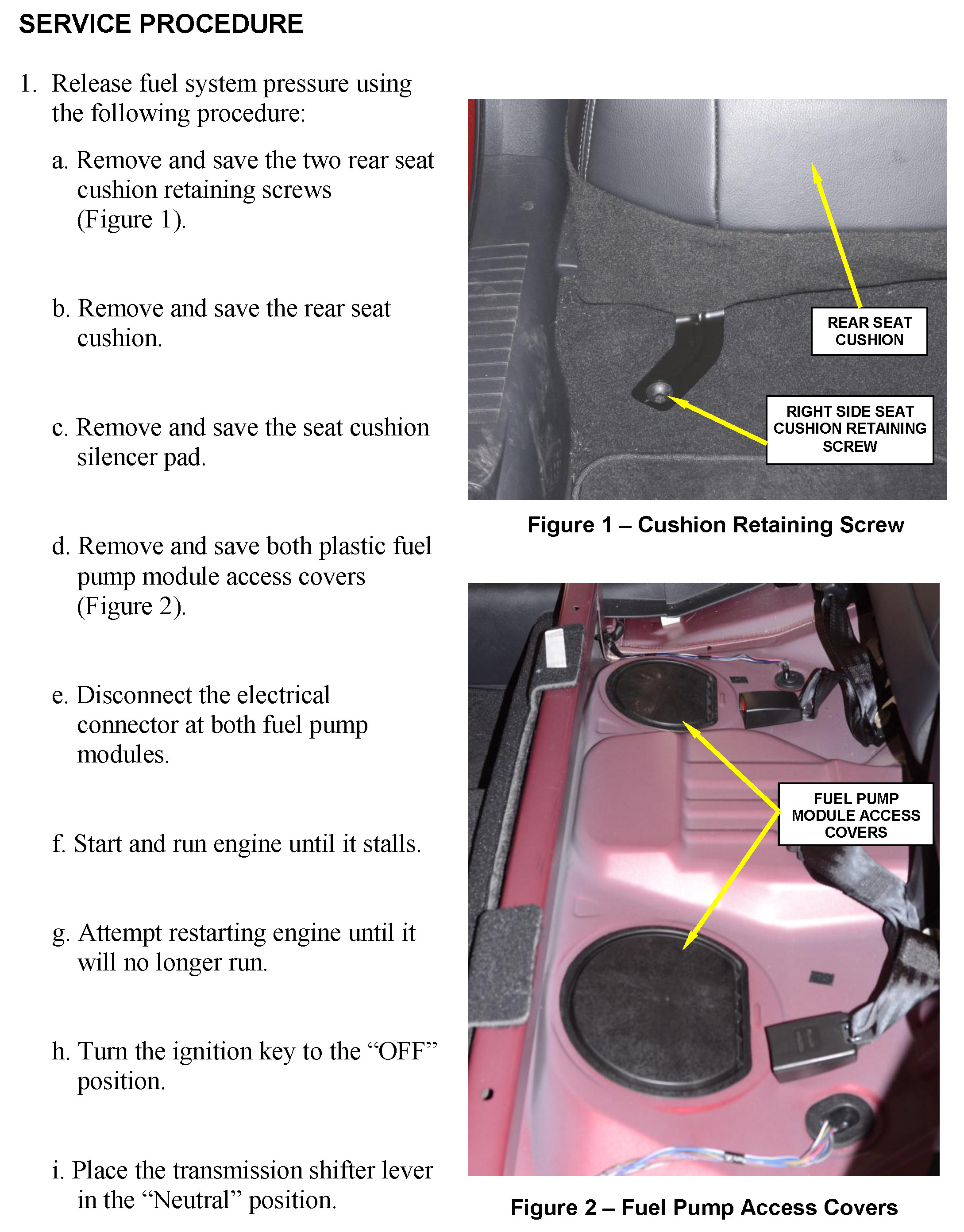

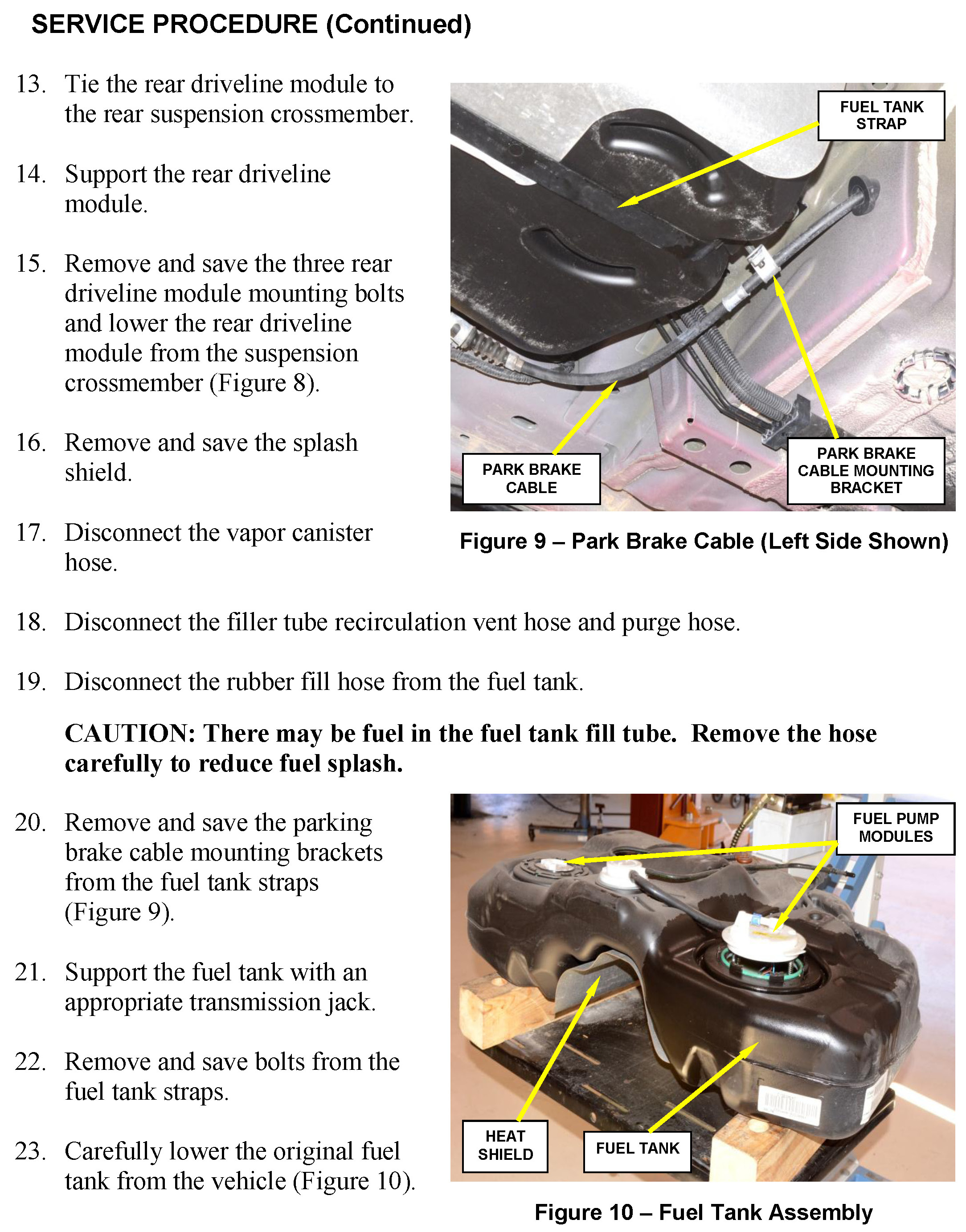

^ To correct this condition, the fuel tank assembly must be replaced.

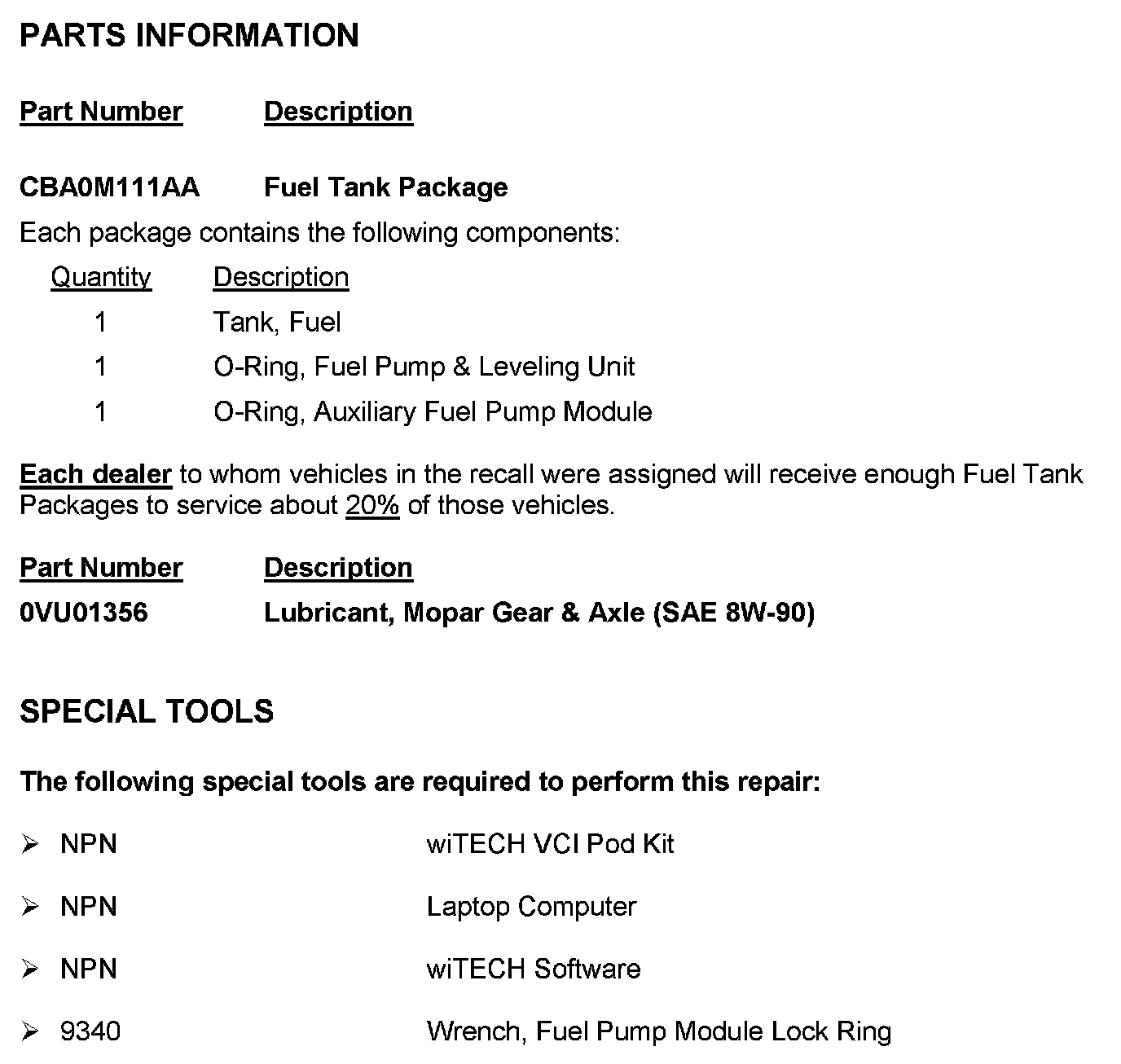

Recall and Parts Information
Canadian Recall Service Instructions and Part Numbers can be different. Always use the attached Canadian Recall Notification for service instructions and parts information.
This Canadian Recall Notification can also be found in DealerCONNECT - See below:
DealerCONNECT > Service > In the Repair section TechCONNECT > 30 - CANADIAN RECALLS
The V.I.N. range for vehicles involved in this campaign is as follows:
1C4NJDCB0CD530148 - 1C4NJDAB0CD583919

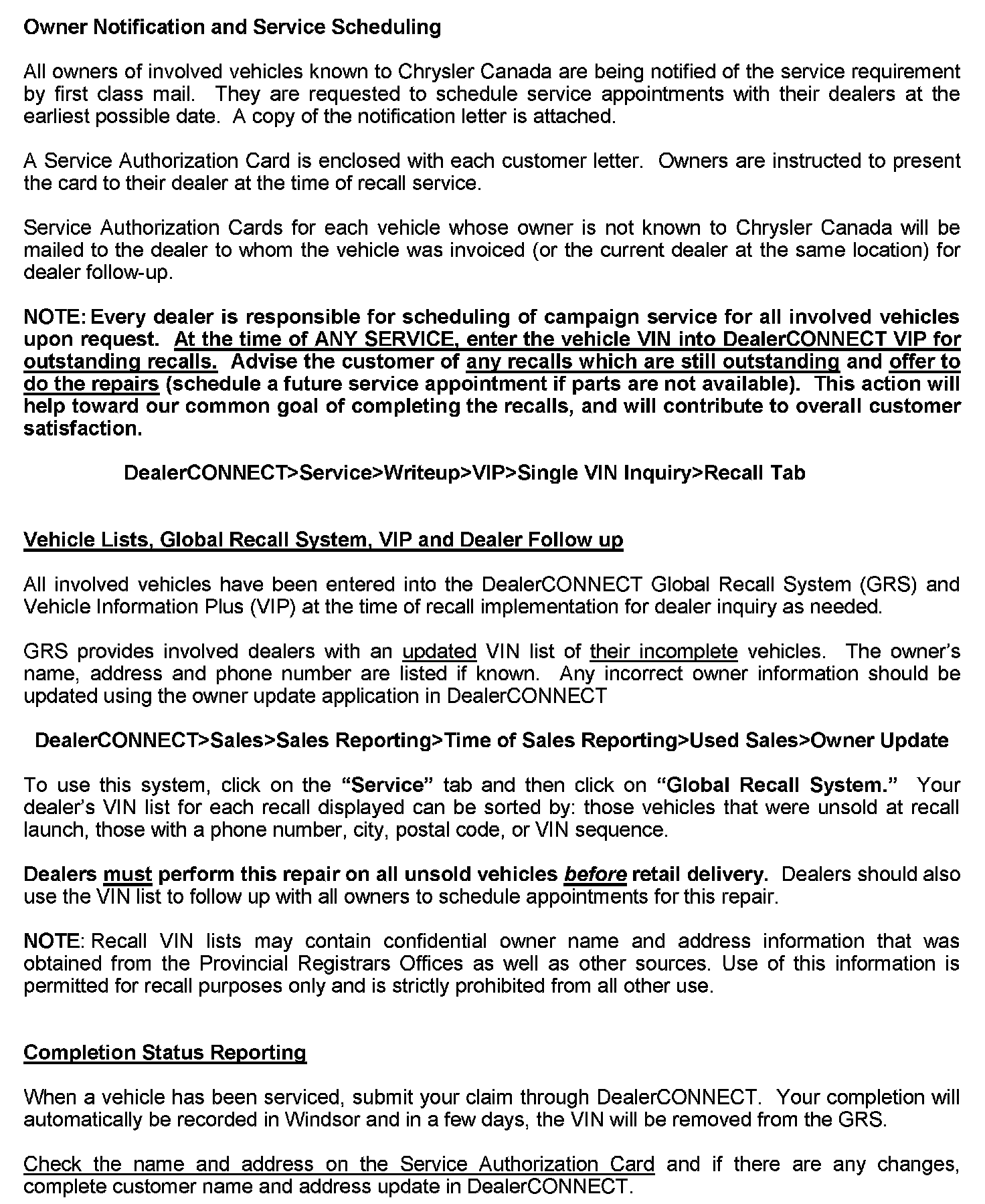

DEALER VIN LISTS Located in DealerCONNECT - Global Recall System (GRS)
GRS has been developed to provide dealers with an up-to-date list of involved vehicles by recall number and by dealer code. Owners known to Chrysler are also listed. Involved vehicles will be removed from the GRS within several days of submitting repair claims.
To use the GRS in DealerCONNECT, you first need to click on the Service tab and then in the Repair section click on Global Recall System. Your dealer's VIN list for each Recall can be sorted by: Unsold Vehicles (at the time of Recall launch), Phone Number, City Name, Zip Code (Postal Code) or VIN.

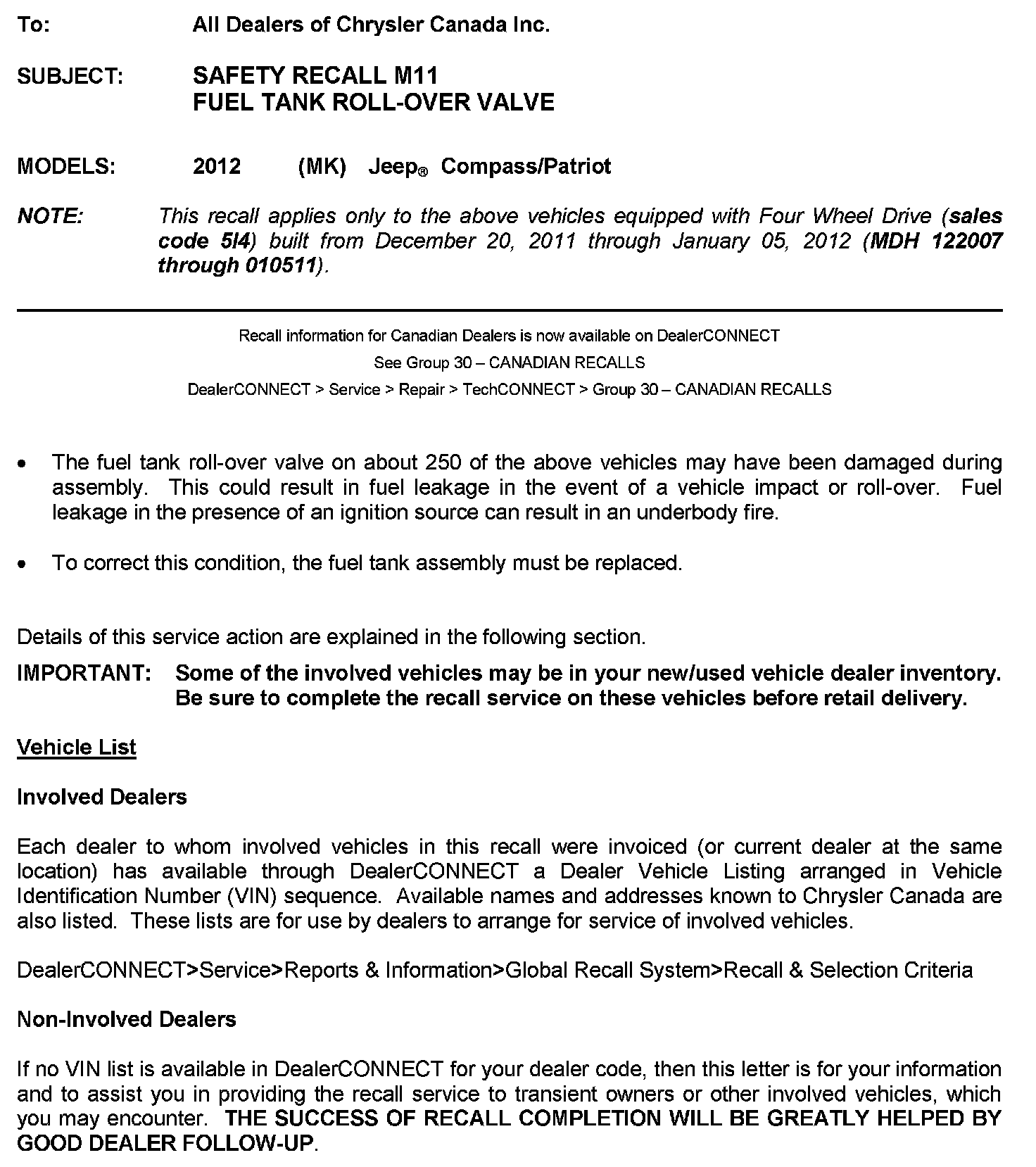

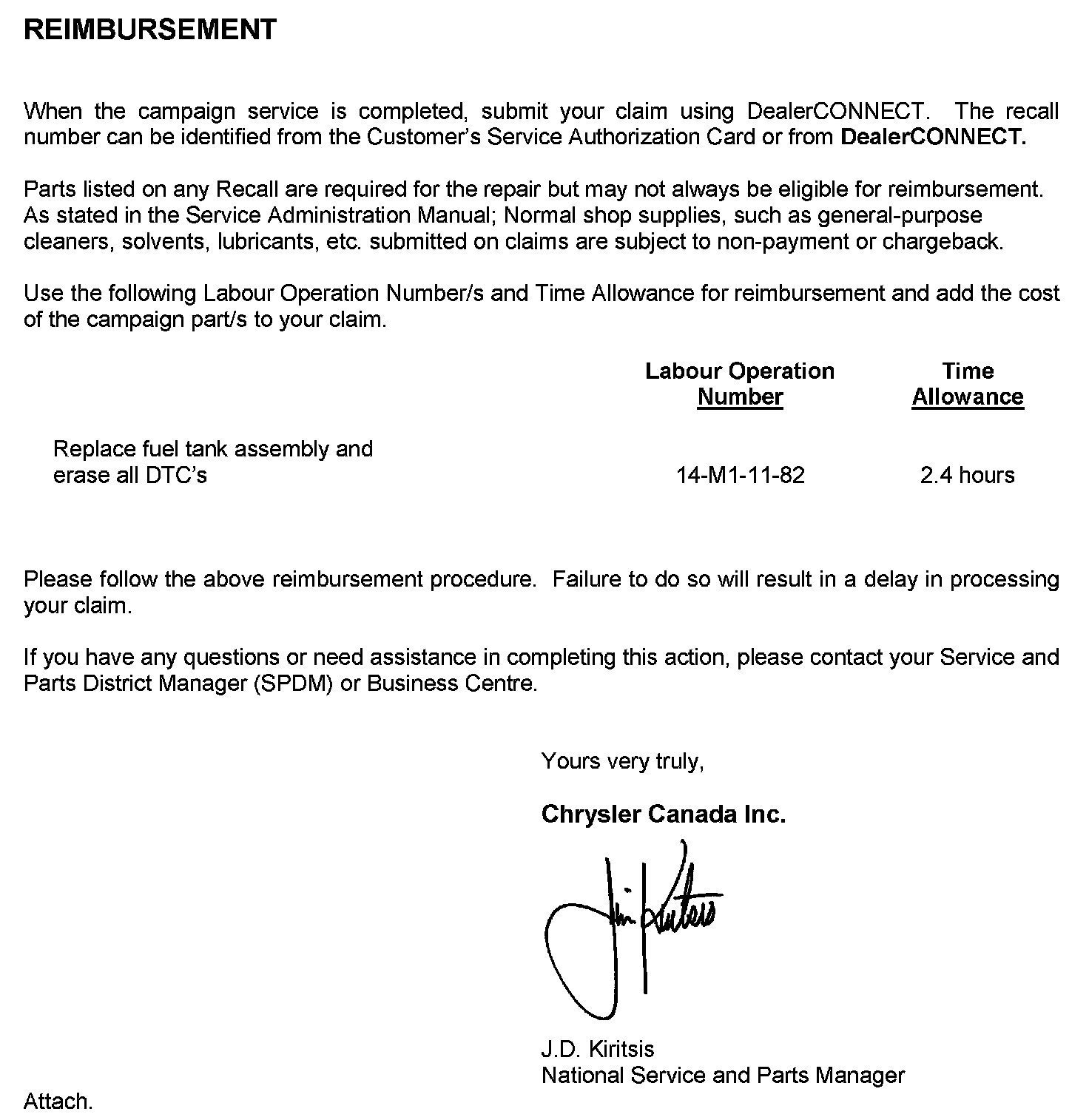

Dealer Information

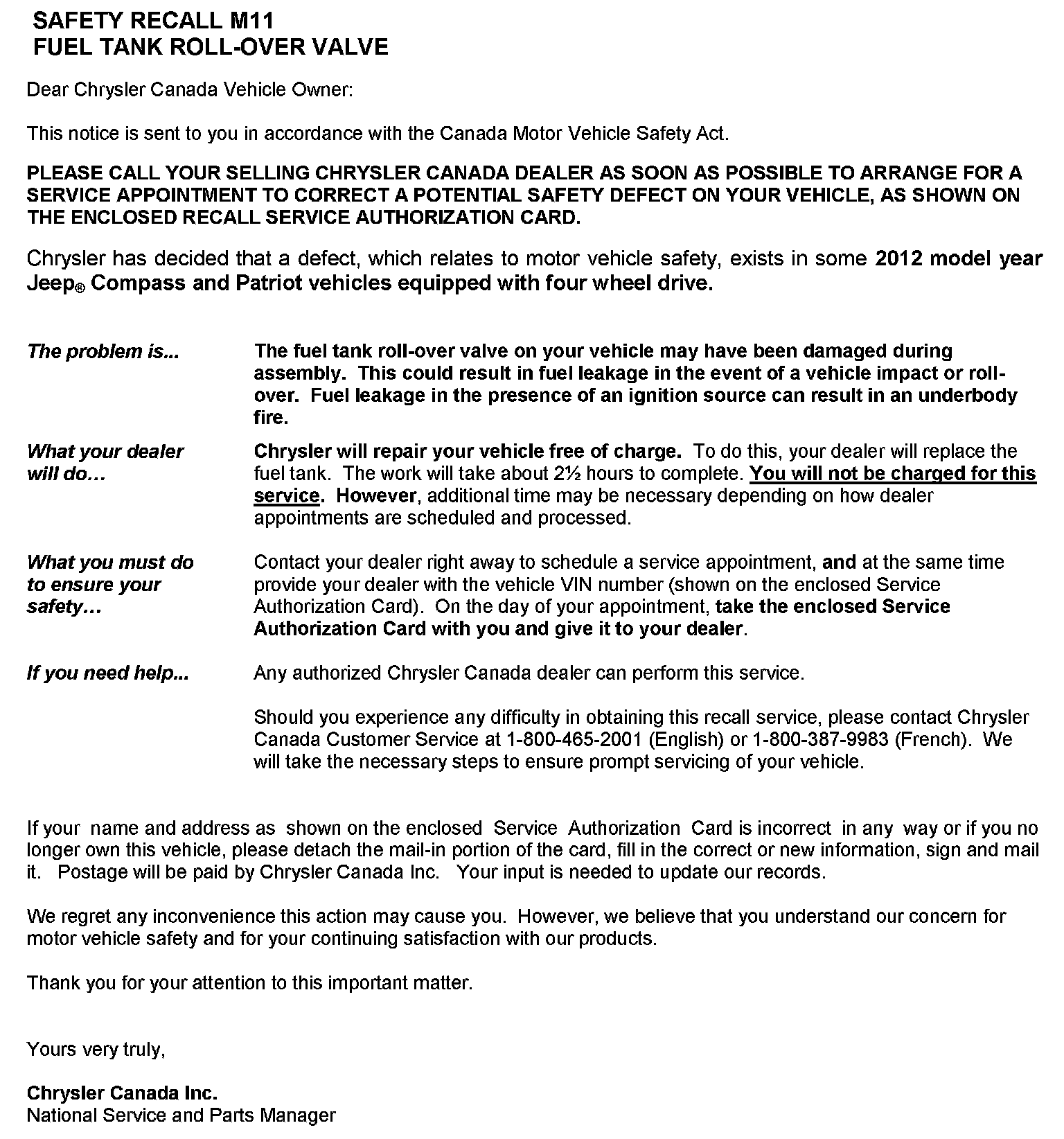

Owner Letter
