Center Mounted Brake Lamp - Removal

COMPASS





1. Disconnect and isolate the battery negative cable.

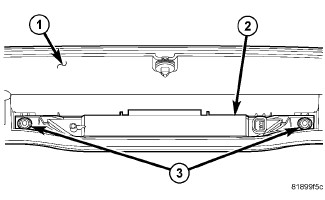

2. Remove the spoiler assembly (1) from the top of the outer liftgate panel. Liftgate Spoiler - Removal.
3. Remove the two screws (3) that secure the Center High Mounted Stop Lamp (CHMSL) (2) to the back of the liftgate spoiler.
4. Remove the CHMSL from the back of the liftgate spoiler.
