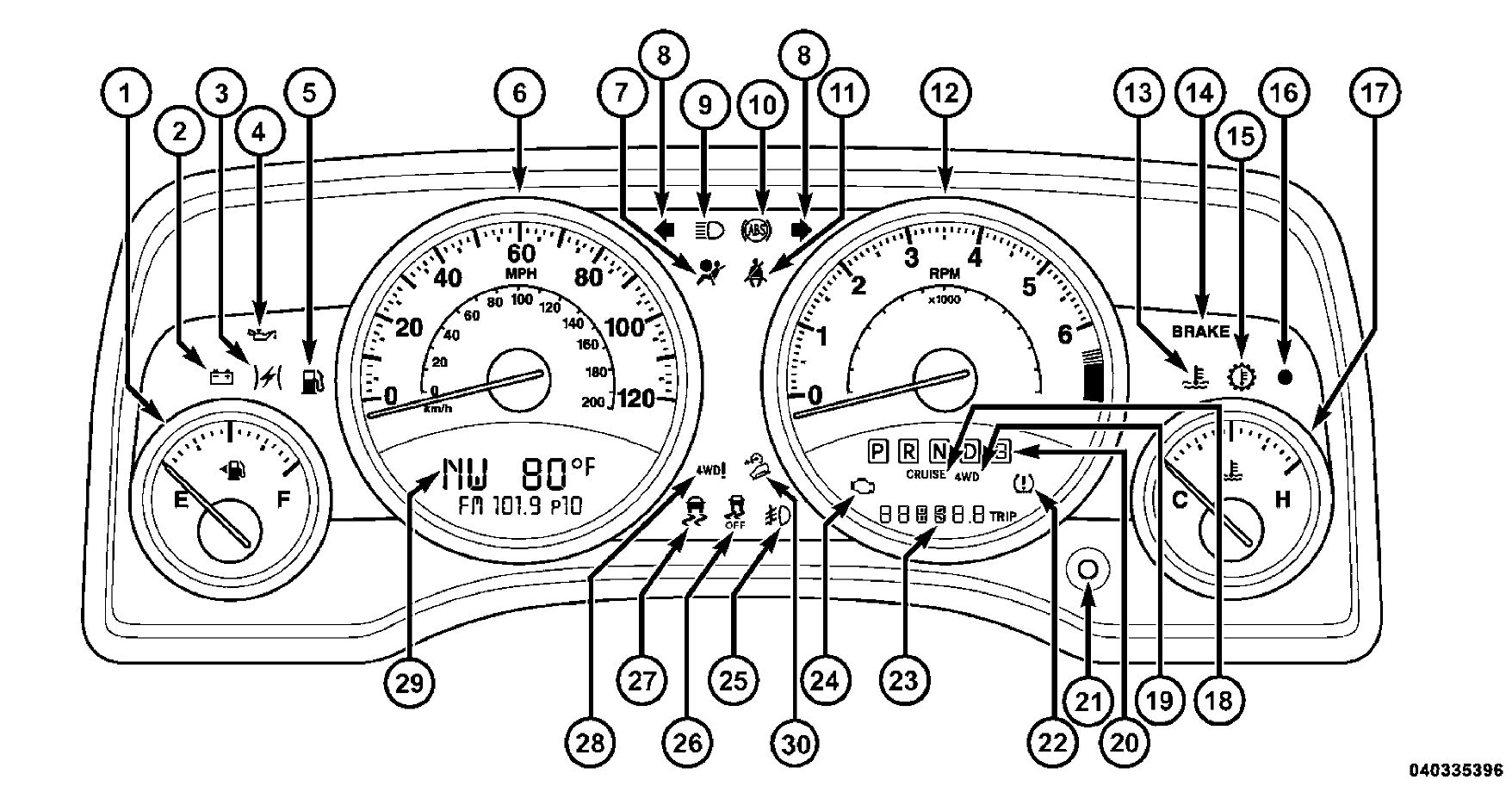

Instrument Cluster / Carrier: Locations

1. Fuel Gauge / Fuel Door Reminder
2. Charging System Light
3. Electronic Throttle Control (ETC) Light
4. Oil Pressure Warning Light
5. Low Fuel Light
6. Speedometer
7. Air Bag Warning Light
8. Turn Signal Indicators
9. High Beam Indicator
10. Anti-Lock Brake (ABS) Light
11. Seat Belt Reminder Light
12. Tachometer
13. Engine Temperature Warning Light
14. Brake Warning Light
15. Transmission Temperature Warning Light
16. Vehicle Security Light if Equipped
17. Temperature Gauge
18. Cruise Indicator if Equipped
19. 4WD Indicator if Equipped
20. Shift Lever Indicator
21. Odometer/Trip Odometer Reset Button
22. Tire Pressure Monitoring Telltale Light
23. Odometer Display / Trip Odometer Display Area
24. Malfunction Indicator Light (MIL)
25. Front Fog Light Indicator if Equipped
26. Electronic Stability Control (ESC) OFF Indicator Light if Equipped
27. Electronic Stability Control (ESC) Activation/Malfunction Indicator Light if Equipped
28. 4WD! Warning Light if Equipped
29. Electronic Vehicle Information Center (EVIC) Display if Equipped
30. Hill Descent Indicator if Equipped
