Left

REMOVAL





1. Unlock the retainers (2) and remove the fresh air inlet duct (3) from air cleaner body (1).





2. Disconnect and isolate the negative battery cable.
3. Unlock and disconnect the electrical connectors (2) from the PCM (4).
4. Remove the mounting bolt (3) and ground wire (1).





5. Remove the air inlet tube (2) from the air cleaner body (1).
6. Disconnect the make-up air hose (3) from the air cleaner body.
7. Remove the support bracket bolt from the strut tower.
8. Pull upward to disengage the pins from the rubber grommets and remove the air cleaner body (1).





9. Support the transaxle with a suitable jack.

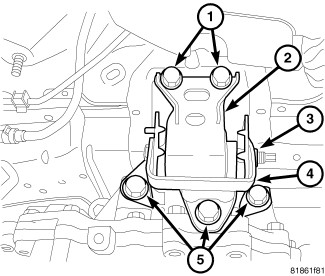

10. Remove the left mount through bolt (3).
11. Remove the left mount bracket to body frame rail fasteners (1).
12. Remove the mount (2).
