Splash Shield - Installation

INSTALLATION

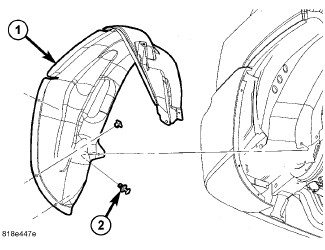

1. Install the splash shield (1) and install the inner push pin fasteners.

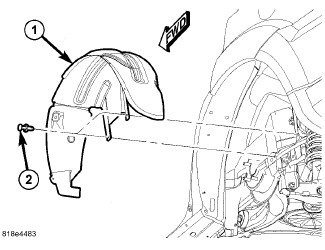

2. Install the rear fastener (2).

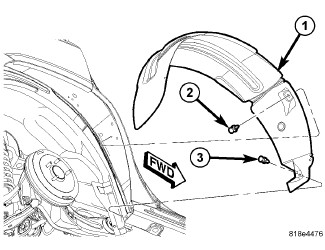

3. Install the front push pin fasteners (2 - 3).





4. Install the fasteners (1) along the outer edge of the splash shield.
