Hood Latch - Installation

INSTALLATION

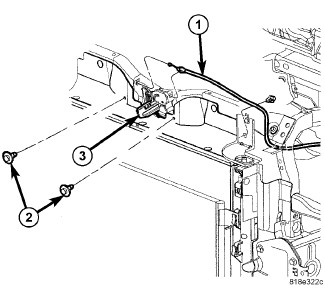

1. Connect the hood latch cable (1 and 2) to the hood latch (3).





2. Position the hood latch (3) to the upper radiator crossmember and loosely install the two bolts (2) that secure the latch to the crossmember.
3. Align the hood latch (3) to the upper radiator crossmember using the reference marks made during the removal procedure and tighten the bolts to 13.5 Nm (10 ft. lbs.).
4. If required, adjust the hood to the correct position.
