Rear Bumper Reinforcement - Installation

INSTALLATION

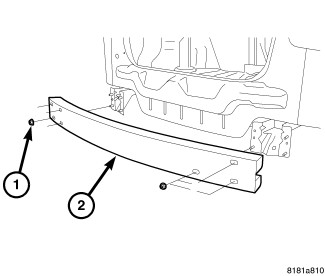

1. Place bumper reinforcement (2) up to frame locations.
2. Install seven nuts (1) and tighten to 23 Nm (17 ft. lbs.).
3. Install fascia, Rear Bumper Fascia - Installation.
