Antenna Mast - Removal - Export

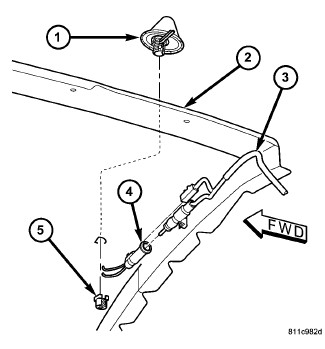

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Lower the headliner as necessary to access antenna mounting fastener Headliner - Removal.
3. Disconnect antenna cable and electrical harness connector (4).
4. Remove the mounting fastener.
5. Remove antenna from roof panel.
