Antenna Mast - Installation - Export

INSTALLATION

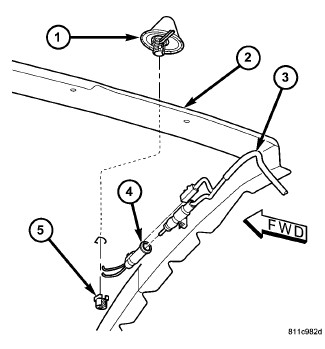

1. Position antenna to roof panel.
2. Install and tighten mounting fastener.
3. Connect antenna cable and electrical harness connector.
4. Raise headliner Headliner - Installation.
5. Connect battery negative cable.
