Differential - Assembly

ASSEMBLY

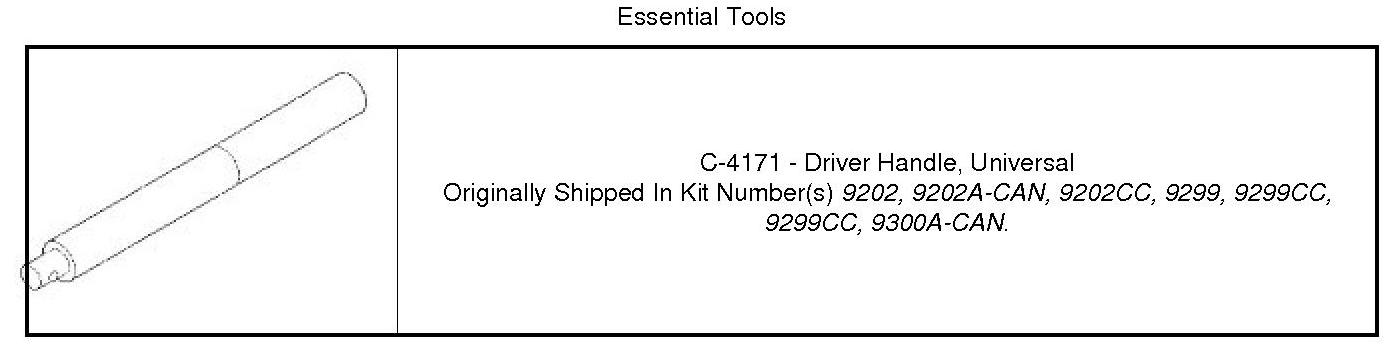

Special Tools:

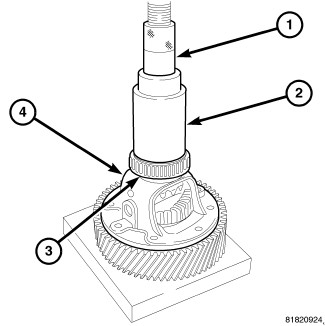

1. Use Installer C-3716-A and Handle to install the bearings onto the carrier (both sides).





2. Install the side gears (2) and shims (3) onto the carrier.





3. Place the pinion gears (3) onto the side gears with the correct shims (1).
4. Roll into place.





5. Install the pinion shaft (2).





6. Use a new roll pin (3).





7. Install the roll pin (3) using a pin punch (1).
