Right Axle Drive Shaft Seal - Installation

INSTALLATION

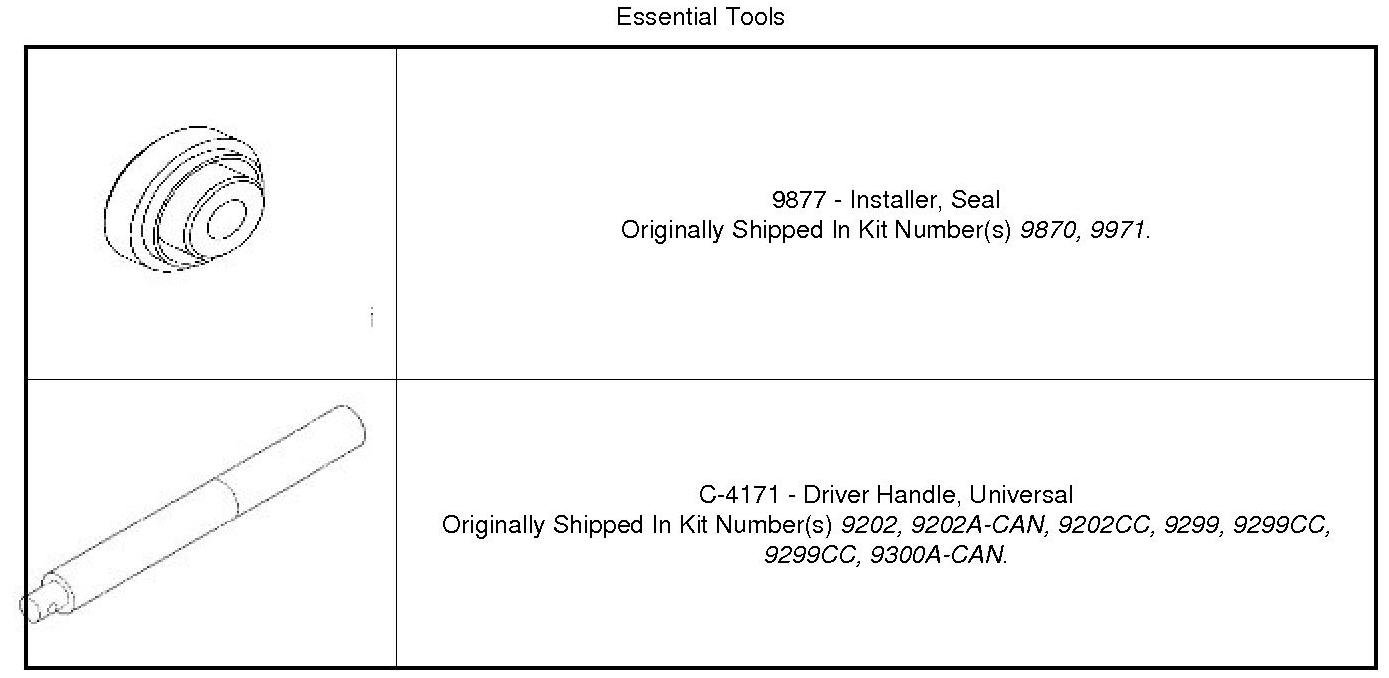

Special Tools:

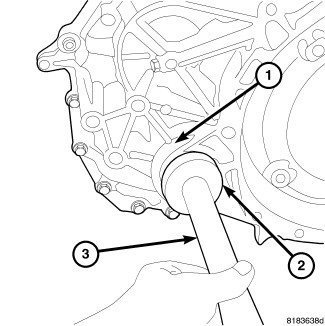

1. Install the seal using Installer (2) and Handle (3).
2. If all wheel drive, install the PTU
3. Install Halfshaft Half Shaft - Installation.
4. Road test vehicle and inspect for leaks.
