A/C - Blower Motor Runs With Switch In OFF Position
NUMBER: 24-001-11GROUP: Heating & Air Conditioning
DATE: February 05, 2011
THIS SERVICE BULLETIN IS ALSO BEING RELEASED AS RAPID RESPONSE TRANSMITTAL 11-007. ALL APPLICABLE SOLD AND UN-SOLD VIN's HAVE BEEN LOADED. TO VERIFY THAT THIS SERVICE ACTION IS APPLICABLE TO THE VEHICLE, USE VIP OR PERFORM A VIN SEARCH IN TECHCONNECT. ALL REPAIRS ARE REIMBURSABLE WITHIN THE PROVISIONS OF WARRANTY.
SUBJECT:
HVAC Control Module
OVERVIEW:
This bulletin involves installing a replacing the HVAC Control Module.
MODELS:
2011 MK Patriot
2011 PM Compass
NOTE:
This bulletin applies to vehicles equipped with the manual A/C and Heater Control Module (Sales Code HAA) built between December 23, 2010 (MDH 1223XX) and January 4, 2011 (MDH 0104XX).
SYMPTOM/CONDITION:
Vehicles may exhibit an condition where the HVAC blower motor continues to run even if the switch is in the off position.
DIAGNOSIS:
If customers complain of the symptom condition, perform the following repair procedure.
PARTS REQUIRED:
REPAIR PROCEDURE:
1. Replace the MIC A/C and Heater Control Module per the service information available in DealerCONNECT/TechCONNECT, Group 24 Heating and Air Conditioning > Controls > Control, A/C and Heater > Removal and Installation.
POLICY:
Reimbursable within the provisions of the warranty.

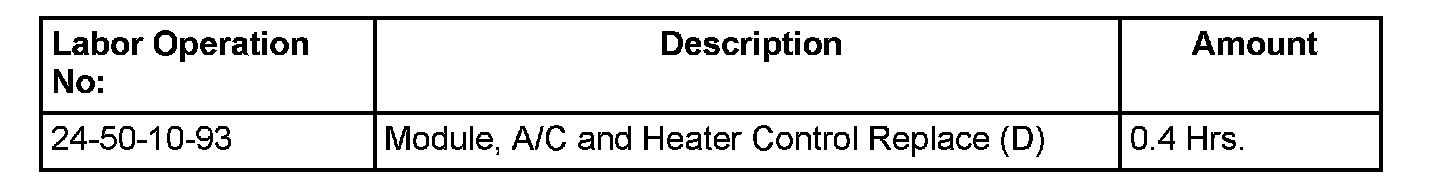

TIME ALLOWANCE:

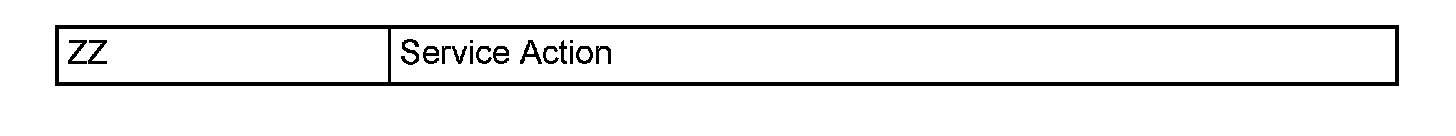

FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
