Park/Turn Signal Bulb - Installation

BULB - MK74

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

NOTE: The front park and turn signal lamp for MK49 models is integral to the front lamp unit. . Front Lamp Unit - Installation

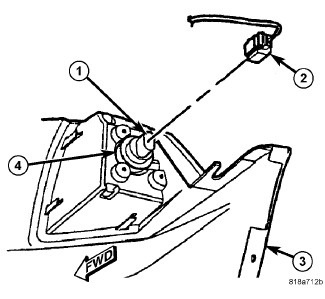

1. Align the base of the bulb with the park/turn signal lamp socket (1).
2. Push the bulb straight into the socket until the base is firmly seated.
3. Align the socket and bulb with the keyed opening on the back of the park/turn signal lamp housing (4).
4. Insert the socket and bulb into the housing until the socket is firmly seated.
5. Rotate the socket clockwise about 30 degrees to lock it into place.
6. Reconnect the engine compartment wire harness connector (2) to the bulb socket connector receptacle.





7. Position the front of the front wheel house splash shield (4) to the front fascia (2) closure panel and secure it with two push pin fasteners (3).
8. Install the push pin fastener (3) that secures the inboard side of the splash shield to the front end sheet metal.
9. Install and tighten the three screws (1) that secure the outboard side of the splash shield to the front fascia. Tighten the screws to 2 Nm (19 in. lbs.).
10. Reconnect the battery negative cable.
