Park and Turn Signal Bulb - Removal

BULB - PARK AND TURN SIGNAL - MK49

NOTE: Although the park and turn signal lamp location is the same in both domestic and export market vehicles, the park lamp function is disabled and the amber bulb type is different in export market vehicles where that function is performed by the clear position lamp bulb.

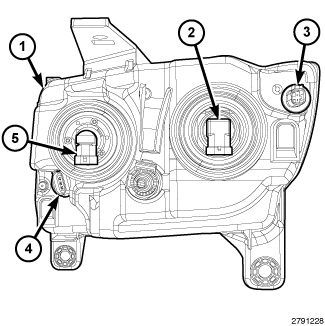

Quad Halogen - Domestic

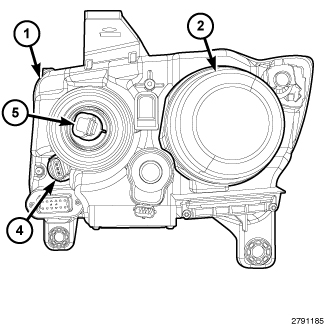

Bi-Halogen Projector - Export
1. Disconnect and isolate the battery negative cable.
2. Reach behind the front lamp unit to access the bulbs from the back of the lamp housing (1).
3. Disconnect the Front End Module (FEM) wire harness connector from the park and turn signal bulb socket connector receptacle (4).
4. Firmly grasp the park and turn signal bulb socket on the back of the front lamp unit housing and rotate it counterclockwise about 30 degrees to unlock it.
5. Pull the socket and bulb straight out from the keyed opening in the housing.
6. Pull the base of the bulb straight out of the socket.
