Rear

BULB - MK49

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

NOTE: The rear fog lamp for MK74 models is integral to the tail, stop and turn lamp unit. . Tail Stop Turn Lamp - Installation

NOTE: The following procedure applies only to vehicles manufactured for certain export markets where rear fog lamps are optional or required equipment. In North American markets, a rear reflex (reflector) is installed in each rear fascia opening used for the rear fog lamps, but rear fog lamps are not available in vehicles manufactured for North American markets.

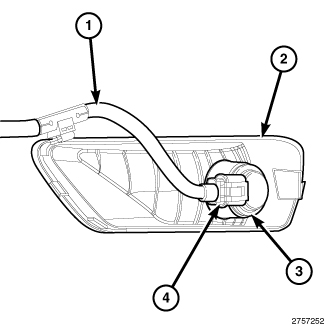

1. Align the base of the rear fog lamp bulb with the bulb socket (3).
2. Push the bulb straight into the socket until the base is firmly seated.
3. Align the socket and bulb with the keyed opening on the back of the rear fog lamp housing (2).
4. Insert the socket and bulb into the housing until the socket is firmly seated.
5. Rotate the socket clockwise about 30 degrees to lock it into place.
6. Position the lamp close enough to the rear fascia opening to access and reconnect the rear fascia wire harness (1) connector (4) to the lamp socket on the back of the lamp housing.
7. Reinstall the rear fog lamp into the rear fascia. . Fog Lamp - Installation
8. Reconnect the battery negative cable.
