Luggage Rack - Installation

INSTALLATION

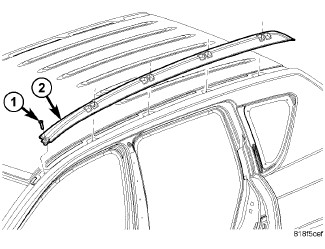

Compass





1. Install the roof rack rails (2) and install the screws (1).
2. Tighten the screws to 4 Nm (35 in. lbs.).

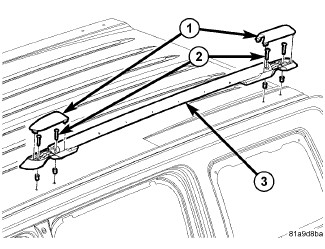

Patriot





1. Install the roof rack rails (3) and install the screws (2).
2. Tighten the screws to 4 Nm (35 in. lbs.).
3. Position the end caps (1) back into place and seat fully.
