A-Pillar Trim Panel - Removal






REMOVAL

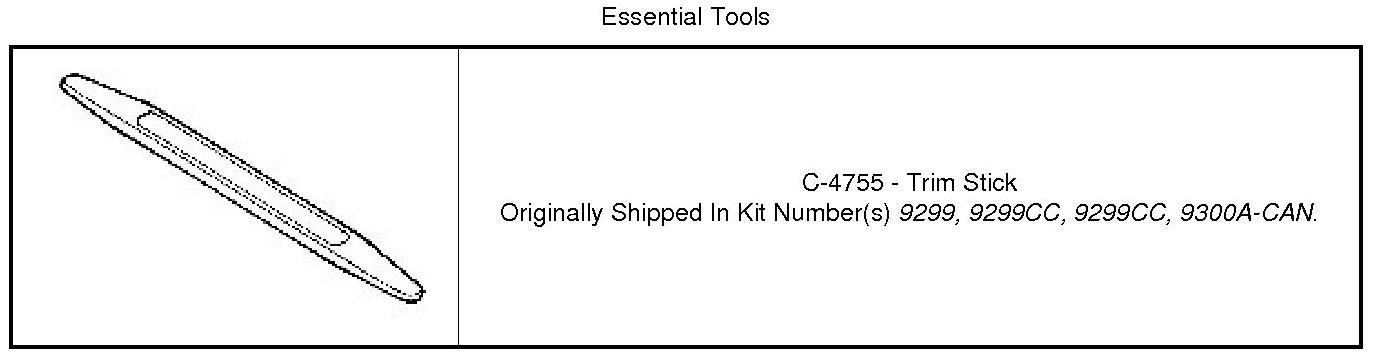

Special Tools:










1. Using a trim stick or equivalent, release the clips (2) and separate the A-pillar trim from the A-pillar.
