Headliner - Installation

INSTALLATION






NOTE: In the event the headliner is damaged or creased during removal, it will need to be replaced with a new headliner.

1. Position the headliner into the vehicle and connect the washer hose at the front (1).





2. Tuck the headliner up over the remaining interior trim and connect the rear washer hose, if equipped.

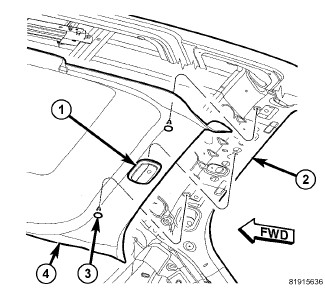

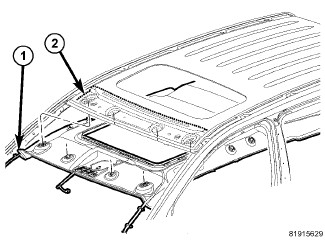

3. Connect the dome light (1) electrical connector and position the headliner (4) up onto the rear header (2).
4. Install the push pin fasteners (3).

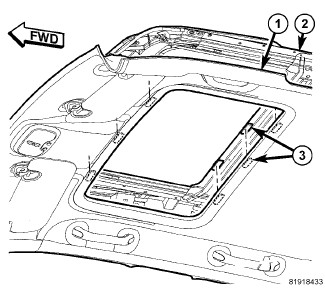

5. If equipped with a sunroof seat the trim ring fasteners (3) fully.





6. Install the assist handles (2) and seat the retaining clips fully.

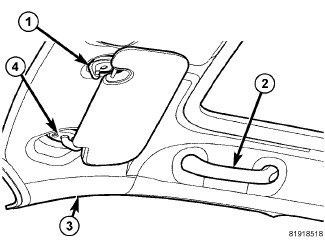

7. Install the visors (4) and supports (1) and install the screws.





8. Install the C-pillar trim (1), C-Pillar Trim Panel - Installation.





9. Install the upper B-pillar trim (1), B-Pillar Trim Panel - Installation.





10. Return the seats into the upright positions.
11. Press the headrest sleeve release buttons and install the headrest.





12. Connect the rear view mirror (3) electrical connectors (1 and 2).





13. Position the wire harness onto the A-pillar (2) and seat the push pin retainers (1) fully.
14. Connect the electrical connector (3).





15. Position the bottom A-pillar tab into the top cover (1) and seat the retaining clips (2) fully.
