Floor Console - Installation

INSTALLATION

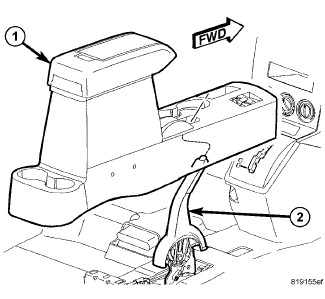

1. Position the console (1) into the vehicle and down over the park break lever (2).

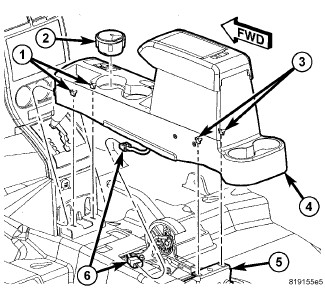

2. Connect the electrical connector (6).
3. Position the front of the console (4) up into the shifter console and position the front clips (1).
4. Position the rear of the console down and seat the clips (1 and 3) fully.
