Latch - Installation

INSTALLATION

Compass





1. Connect the electrical connectors.
2. Install latch assembly into liftgate pocket.

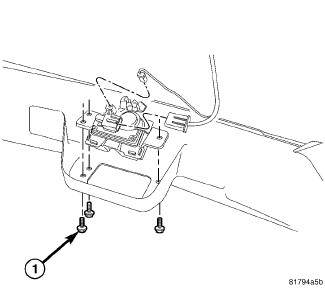

3. Install three fasteners (1) and tighten to 8 Nm (6 ft. lbs.).
4. Install cable fastener to liftgate inner while working the cable upward.
5. Guide cable upward through opening and tuck into the outer handle hole.

Patriot





1. Connect the electrical connector (1) and install the latch (2).
2. Install the fasteners (3) and tighten to 8 Nm (6 ft. lbs.).





3. Connect the lock rod (3) and secure the clip (4).





4. Connect the exterior handle cable (1) to the handle (2).

Compass and Patriot





NOTE: Compass shown, Patriot similar.

1. Install the lower liftgate trim (3), Liftgate Trim Panel - Installation.
