Hinge - Installation

INSTALLATION






NOTE: A suitable body sealant should be used when removing or moving the hinges.

1. If necessary, paint replacement hinge before installation.

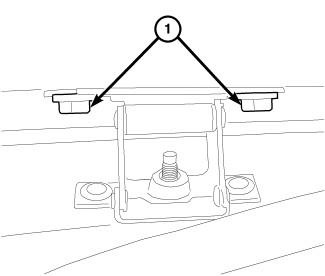

2. Carefully, pry down headliner and install the nuts (1) and bolt (2).
3. Tighten fasteners to 15 Nm (11 ft. lbs.).

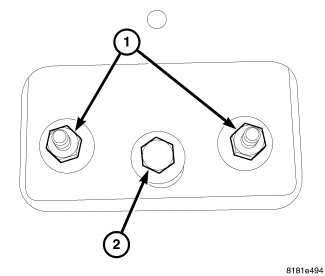

4. Install the liftgate bolts (1) and tighten to 15 Nm (11 ft. lbs.).





5. Connect liftgate harness (1) and washer hose.
6. Adjust liftgate if necessary,
7. Position the upper rear headliner back into place and seat the two push pin fasteners fully.
