Exterior Handle - Removal
Exterior Handle - Removal

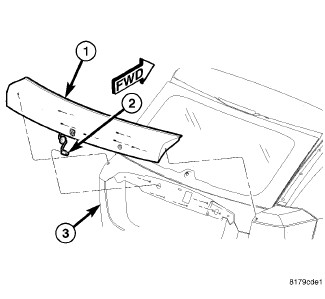

REMOVAL
1.
Remove the lower liftgate
trim panel
,
Liftgate Trim Panel - Removal
.
2.
Remove nuts from handle studs.
3.
Disconnect wire connector.
4.
Disconnect cable from handle.
