Exterior Handle - Installation

INSTALLATION

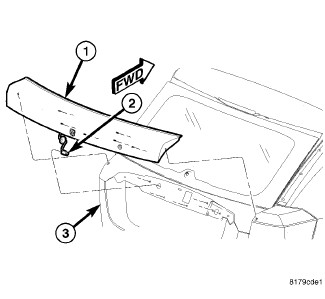

1. Connect the electrical connector (2).
2. Connect release cable to the handle.
3. Align handle studs to the holes in the liftgate and install handle (1).
4. Install six nuts to handle studs and tighten to 8.5 Nm (75 in. lbs.).
.




5. Install the lower liftgate trim (3), Liftgate Trim Panel - Installation.
