Liftgate - Removal

REMOVAL





1. Open liftgate.
2. Disconnect washer hose.

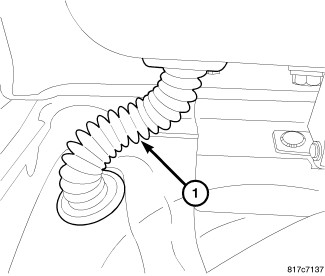

3. Disconnect liftgate harness (1).
4. Disconnect cable from handle.
5. Support the liftgate and disconnect the liftgate prop cylinders, Gas Prop - Removal

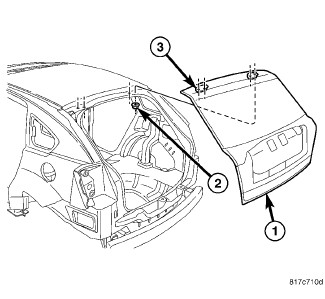

6. Remove fasteners (2) attaching liftgate (1) to liftgate hinge (3).
