Front Bumper Reinforcement - Removal

REMOVAL

1. Remove fascia, Front Bumper Fascia - Removal.

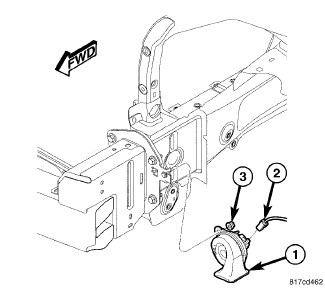

2. Disconnect wire connector (2) and remove horn (1).Horn - Removal

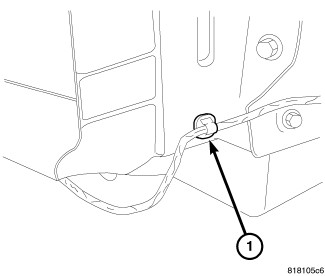

3. Remove wire harness push pin fastener (1).

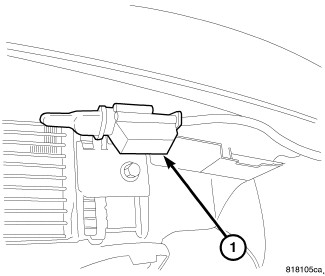

4. Remove wire harness (1) from bottom of bumper reinforcement.

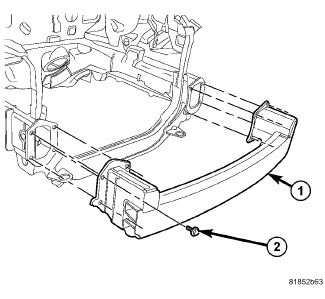

5. Remove 8 fasteners (2) from bumper reinforcement (1).
