B1428
B1428-REMOTE RADIO SWITCH INPUT CIRCUIT STUCK
For a complete wiring diagram, refer to the Wiring Information.
- When Monitored:
Continuously with the ignition on.
- Set Condition:
The Cluster senses that the Remote Radio Switch Input circuit is stuck for greater than 600 seconds.

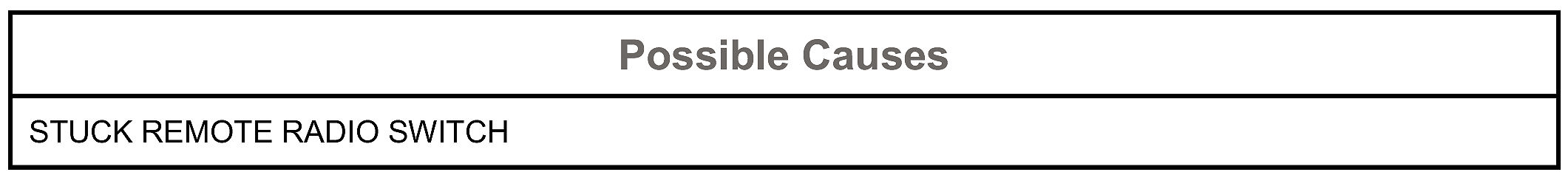

1. CHECK FOR AN ACTIVE DTC
NOTE: Before proceeding with the diagnostic procedure, verify that the connections are proper made, properly seated and verify proper pin terminal tension. A loose connection at any of the related connectors may cause the DTC to set.
1. Turn the ignition on.
2. Press each Remote Radio Switch twice.
3. With the scan tool, read DTCs
Does the scan tool display this DTC as active?
Yes
- Go To 2
No
- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
- Perform the BODY VERIFICATION TEST. Body Verification Test
2. LEFT OR RIGHT REMOTE RADIO SWITCH
NOTE: Check for a stuck Remote Radio Switch. Repair as necessary.
1. With the scan tool, view the switch status. Status can be viewed in the Cluster data display.
NOTE: With the switches pressed, the value for the remote switches should change state on the scan tool.
Left Remote Radio Switch
- Seek up
- Preset
- Seek Down
Right Remote Radio Switch
- Volume Up
- Audio Mode
- Volume Down
Does the scan tool display the correct status of the switches in the data display?
Yes
- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
No
- WARNING: Turn the ignition oft disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury. WARNING: Do not place an intact non-deployed airbag face down on a hard surface, the airbag propels into the air if accidentally deployed. Failure to follow these instructions may result in possible serious or fatal injury. NOTE: Visually and physically inspect the wiring harness between the Remote Radio Switch harness connectors and the Right Steering Wheel Switch (Speed Control Switch) harness connector. Repair any damaged wires, connectors, and open/spread terminals. If harness is OK, proceed with test.
- Replace the Remote Radio Switch that does not display the correct value in the data display.
- Perform the BODY VERIFICATION TEST. Body Verification Test
