B123F

B123F-MENU SWITCH STUCK

For a complete wiring diagram, refer to the wiring information .

- When Monitored:
With the ignition on.

- Set Condition:
The Cluster detects the Menu Switch active for greater than 20 seconds.





CHECK FOR AN ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Press the MENU switch three times.
4. With the scan tool, read DTCs.

Does the scan tool display this DTC as active?

Yes

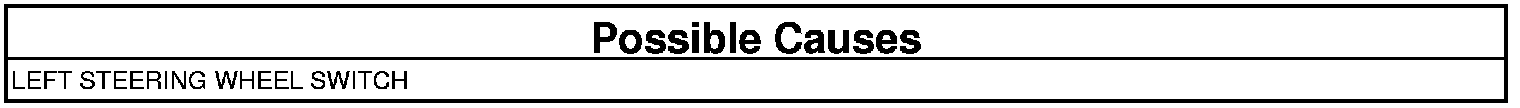

- Replace the Left Steering Wheel Switch.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
