Accessory Drive Belt Tensioner - Removal

GAS ENGINE





1. Raise vehicle on hoist.
2. Remove belt splash shield (3).

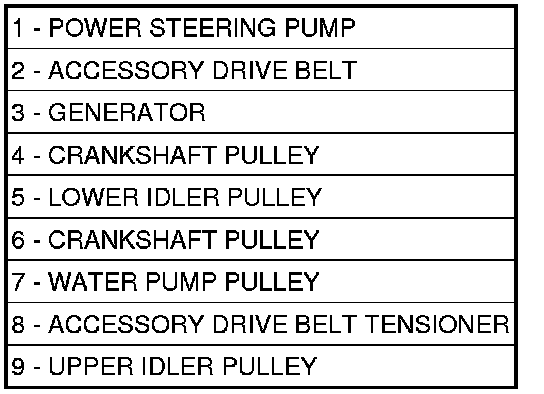

ACCESSORY DRIVE BELT - WORLD ENGINE





3. Remove accessory drive belt Serpentine Accessory Drive Belt - Removal.
4. Remove accessory drive belt tensioner mounting bolt. Remove accessory drive belt tensioner (8).
