B1BD0

B1BD0-ROLL OVER INTERNAL

- When Monitored:
With the ignition on. The module's on board diagnostics continuously performs internal circuit tests.

- Set Condition:
This DTC will set if the module identifies an out of range ORC Roll Over Internal circuit.

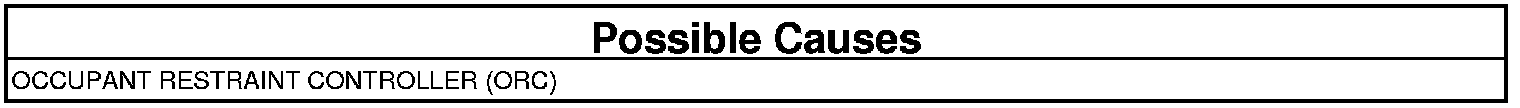

REPLACE OCCUPANT RESTRAINT CONTROLLER
1. Turn the ignition on.

WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

WARNING: If the Occupant Restraint Controller is dropped at any time, it must be replaced. Failure to take proper precautions could result in accidental airbag deployment and serious or fatal injury.

When this code is set, view repair.

Repair

- Replace the Occupant Restraint Controller.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.
