Rear Door Glass - Installation

INSTALLATION - GLASS, Door

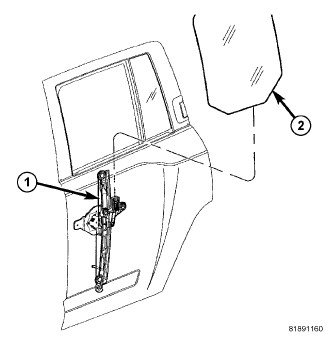

1. Install the glass (2) into the door.

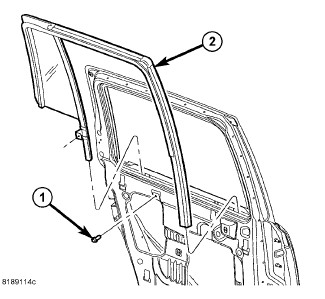

2. Install the glass run (2) assembly into the door and seat fully.
3. Install the screw (1) and tighten to 8 Nm (71 in. lbs.).

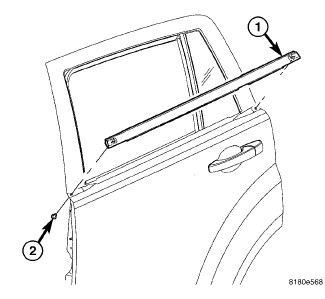

4. Install the outer belt molding (1) and install the screws (2).

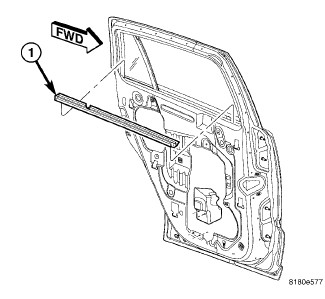

5. Install the inner belt molding (1).
6. Install the foam block and install the two screws.





7. Position the glass into the full up position and tape into place.

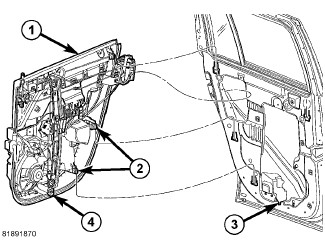

8. Install the door trim module (1). Rear Door Carrier Plate - Installation
