Jeep Truck
>>
2009
>>
Compass 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Motor
>>
Diagrams
>>
Right Front Window Motor (Right Front Door) 2 Way
Right Front Window Motor (Right Front Door) 2 Way

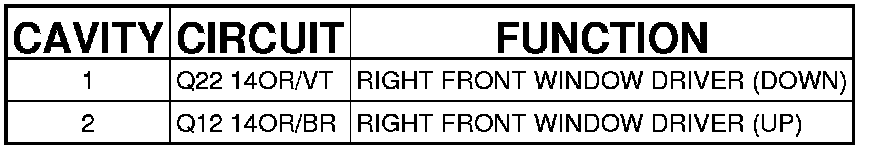

Connector - (RIGHT FRONT DOOR) 2 WAY

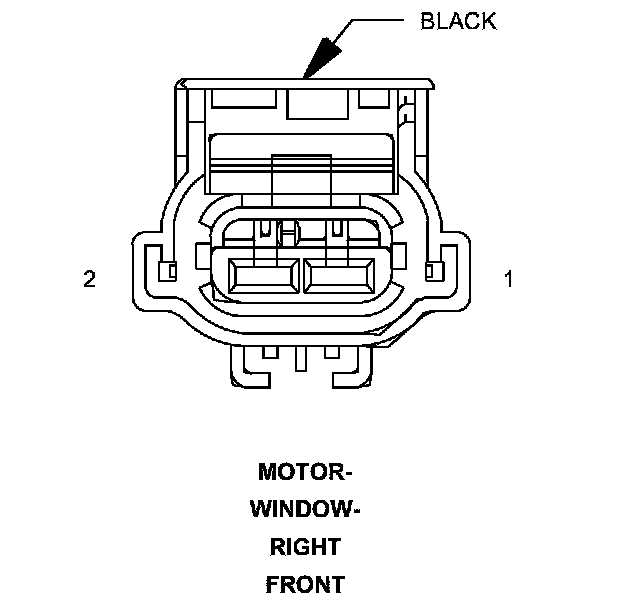

MOTOR-WINDOW-RIGHT FRONT - (RIGHT FRONT DOOR) 2 WAY
