Shift Shaft Bushing(s) - Removal
REMOVAL
1.
Remove shift shaft using procedure.
2.

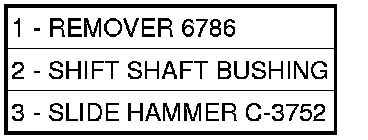

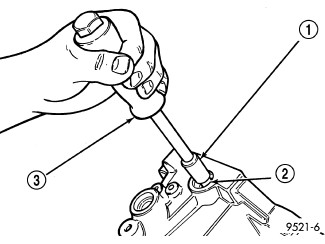

Thread Remover 6786 (1) into bushing.
3.
Install slide hammer C-3752 (3) onto tool and remove bushing (2) using slide hammer
.
