Shift Lever Assembly (Except Autostick) (Instrument Panel) 4 Way

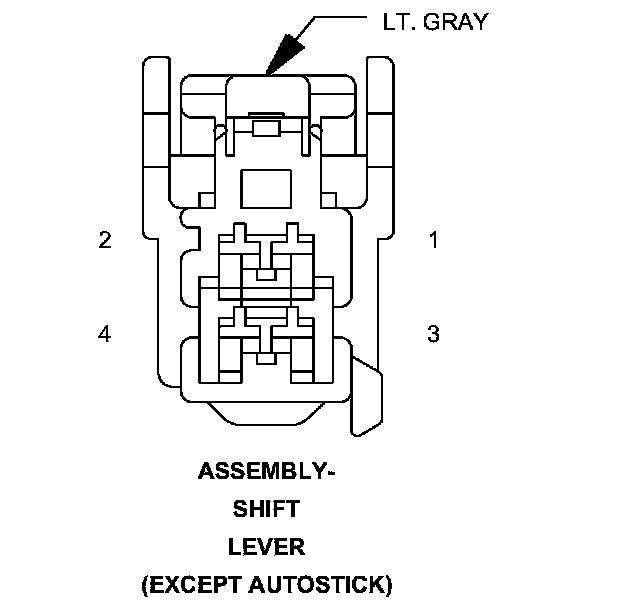

Connector (EXCEPT AUTOSTICK) - (INSTRUMENT PANEL) 4 WAY

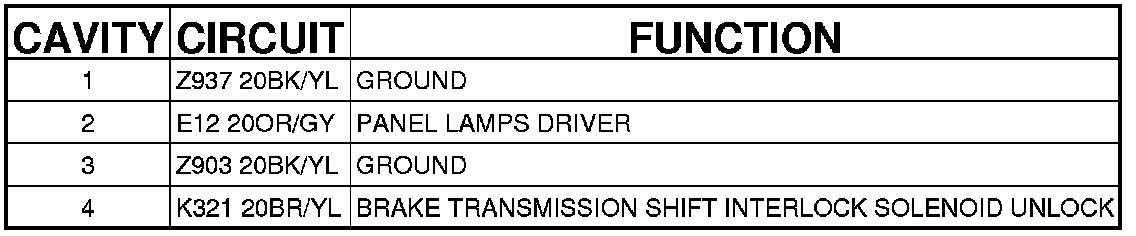

ASSEMBLY-SHIFT LEVER (EXCEPT AUTOSTICK) - (INSTRUMENT PANEL) 4 WAY
