Totally Integrated Power Module C3 (Body) 16 Way
Totally Integrated Power Module C3 (Body) 16 Way

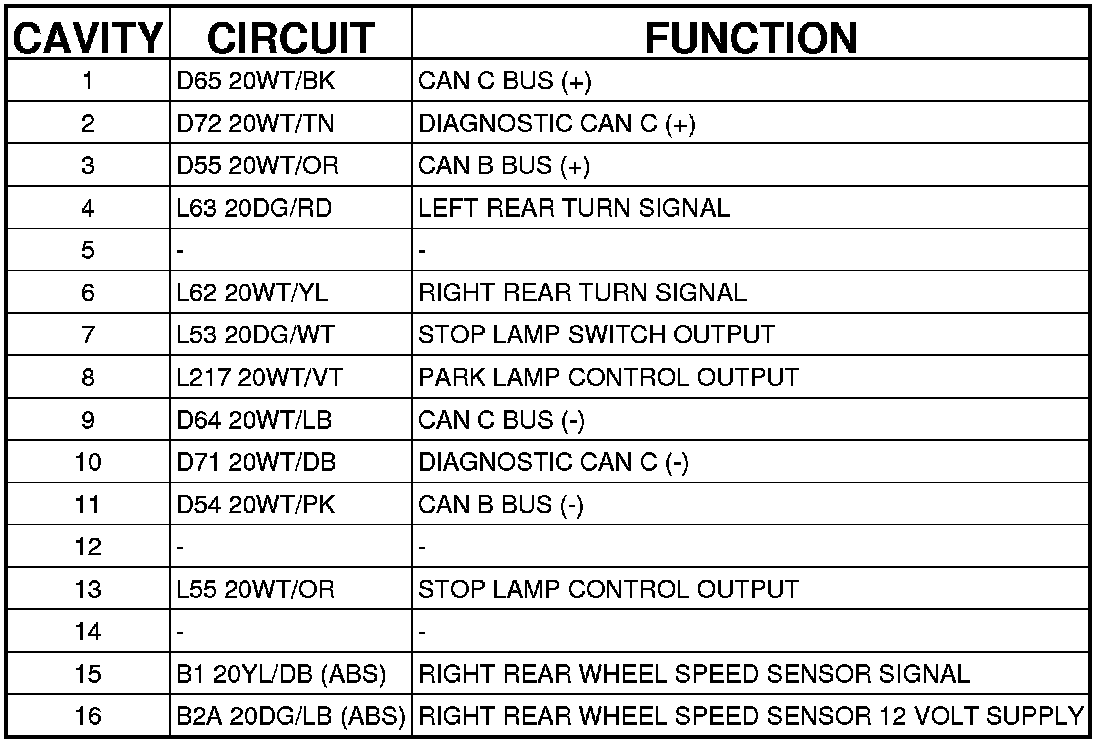

Connector C3 - (BODY) 16 WAY

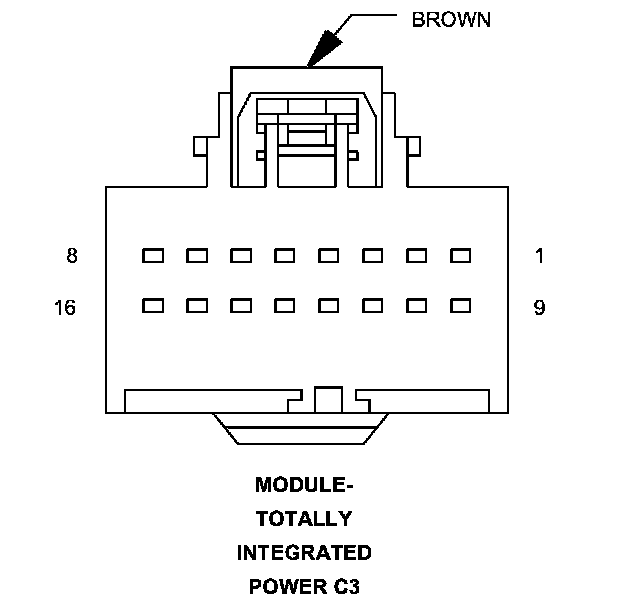

MODULE-TOTALLY INTEGRATED POWER - (BODY) 16 WAY
