Passenger Power Window Switch (Left/Right Front Door) 8 Way

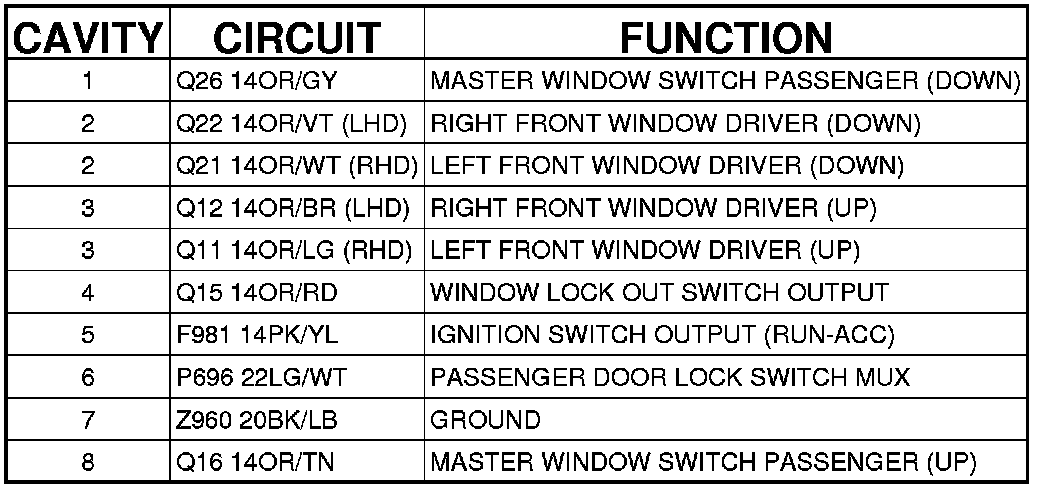

Connector - (LEFT/RIGHT FRONT DOOR) 8 WAY

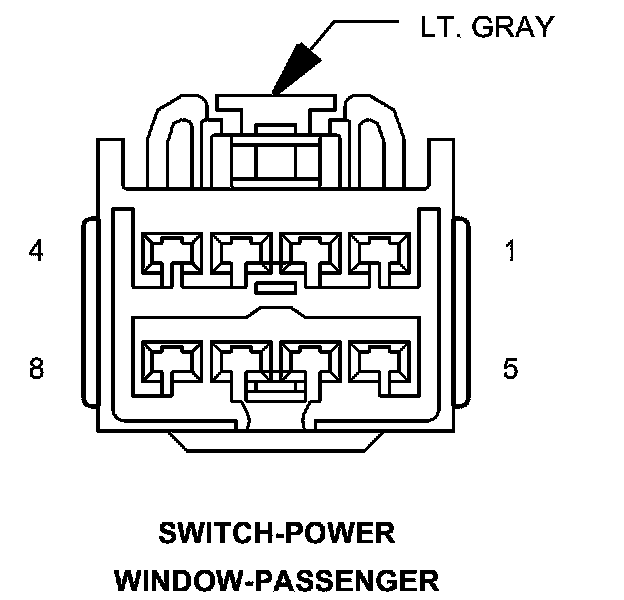

SWITCH-POWER WINDOW-PASSENGER - (LEFT/RIGHT FRONT DOOR) 8 WAY
