FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Jeep Truck
>>
2009
>>
Compass 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Windows and Glass
>>
Power Window Switch
>>
Diagrams
>>
Left Rear Power Window Switch (Left Rear Door) 6 Way
Left Rear Power Window Switch (Left Rear Door) 6 Way

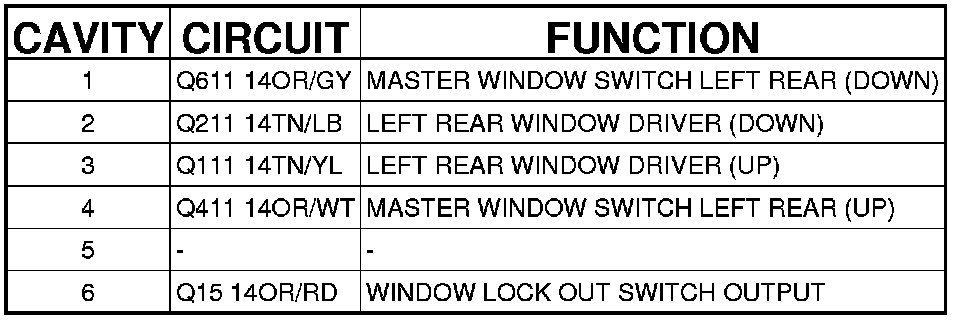

Connector - (LEFT REAR DOOR) 6 WAY

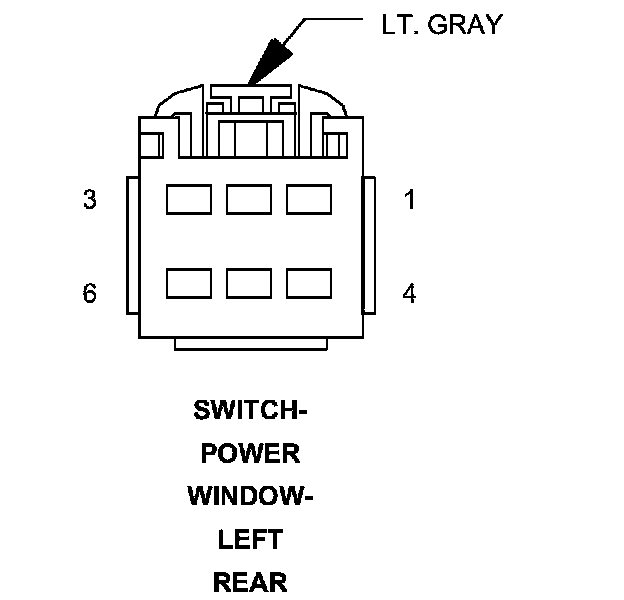

SWITCH-POWER WINDOW-LEFT REAR - (LEFT REAR DOOR) 6 WAY
