Neutral Safety Switch: Diagrams

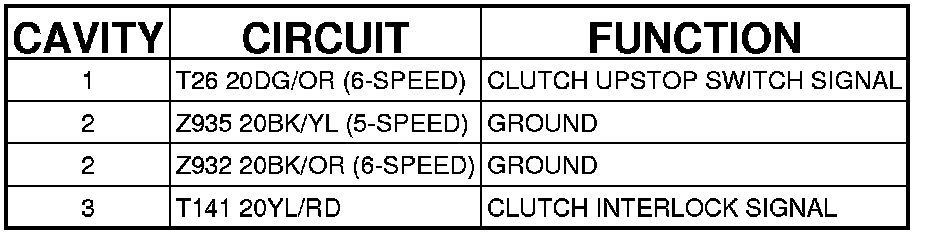

Connector (MTX) - (BODY) 3 WAY

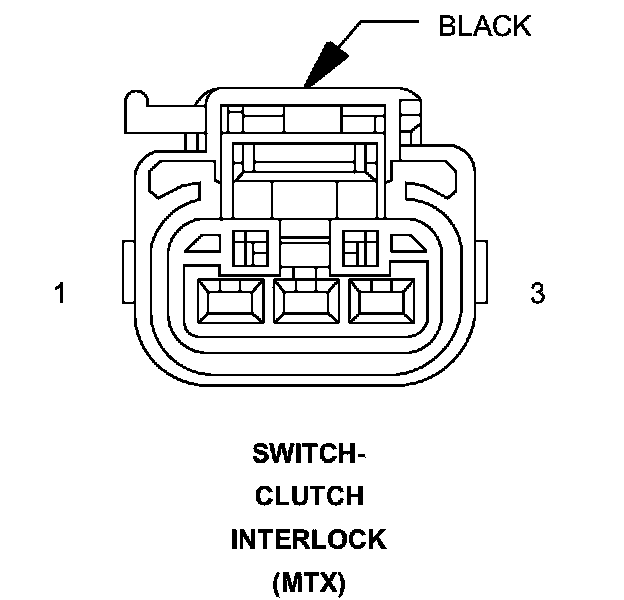

SWITCH-CLUTCH INTERLOCK (MTX) - (BODY) 3 WAY
