Impact Sensor
>>
Diagrams
>>
Right Side Impact Sensor 1 (Body) 4 Way
Right Side Impact Sensor 1 (Body) 4 Way

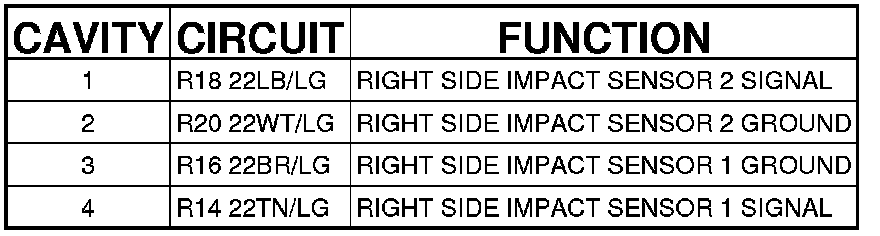

Connector - (BODY) 4 WAY

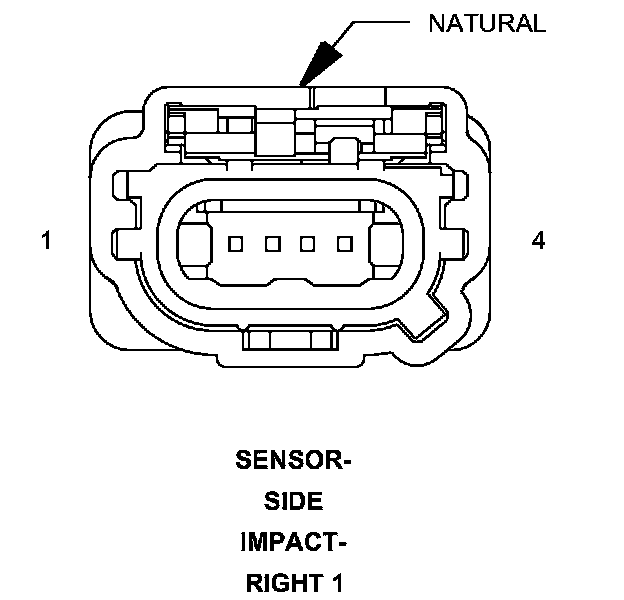

SENSOR-SIDE IMPACT-RIGHT 1 - (BODY) 4 WAY
